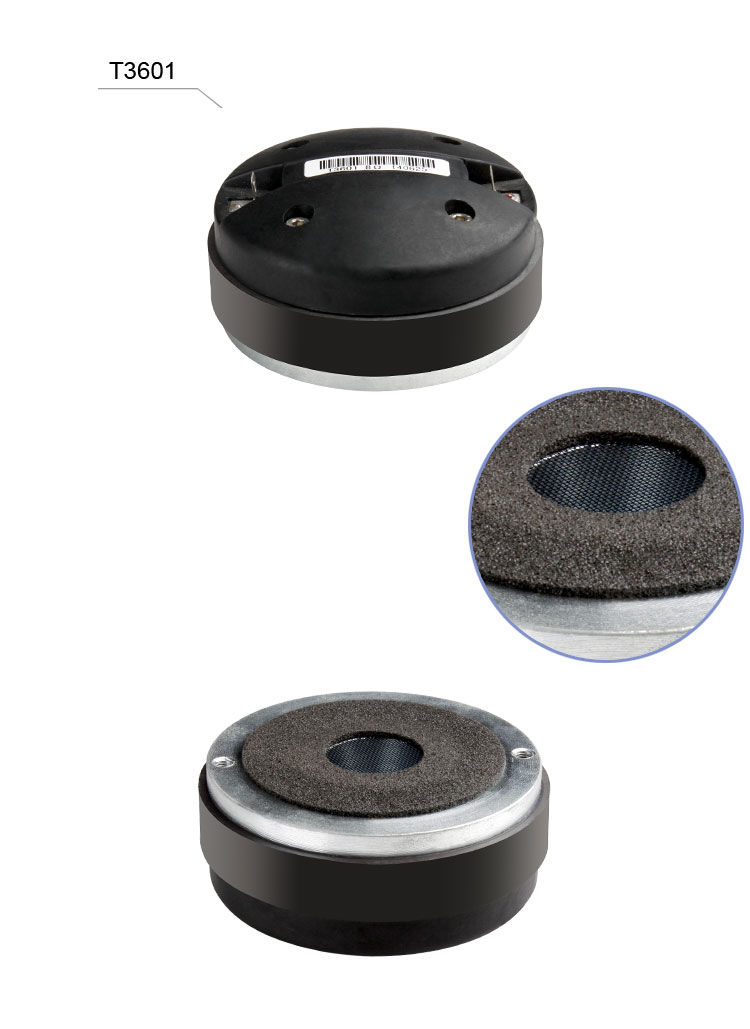

MODEL

T3601

TYPE

DRIVER

THIELE-SMALL PARAMETERS

Exit Throat Diameter

25/0.9

mm/inch

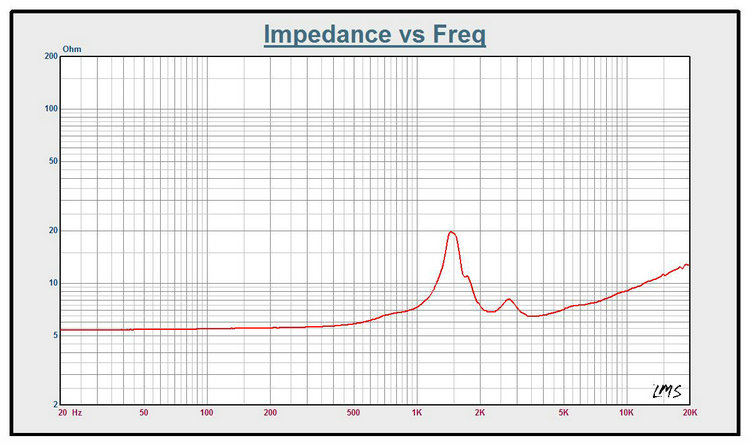

Rated impedance

8

ohm

Power handing capacity

40

watts

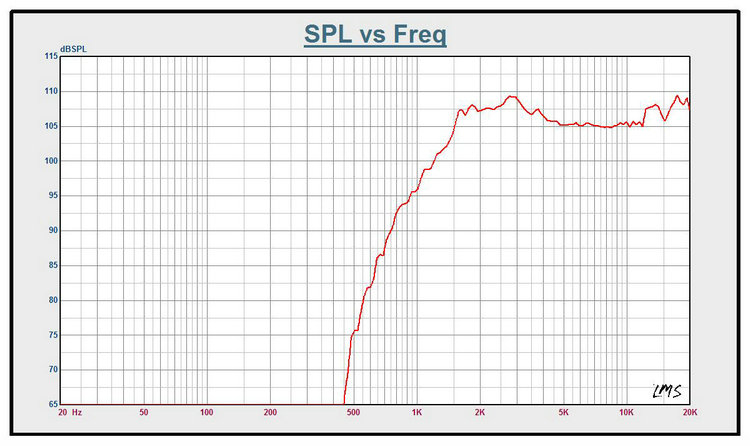

Sensitivity（1w/1m)

105

dB

Frequency Range

1400-18K

Hz

Diaphragm material

PE

suspension material

PE

Voice Coil Diameter

25/0.9

mm/inch

Dc resistance

5.6

ohm

Voice Coil Material

Copper Clad Aluminium

Number of layer

1

Kind of layer

outside

Magnet

ceramic

MOUNTING INFORMATION

overall diameter

φ90/φ3.5

mm/inch

Bolt Circle Diameter

φ76 /φ3.0

mm/inch

Bolt Hole Diameter

 2-M5 / 2-M0.2

mm/inch

Depth

52 /2.05

mm/inch

SHIPPING INFORMATION

Net Weight     (1 units)

1.1

kg

Shipping Weight(10units)

13

kg

Package Size   (10 units)

298×233×158mm

mm
