MODEL

TYPE

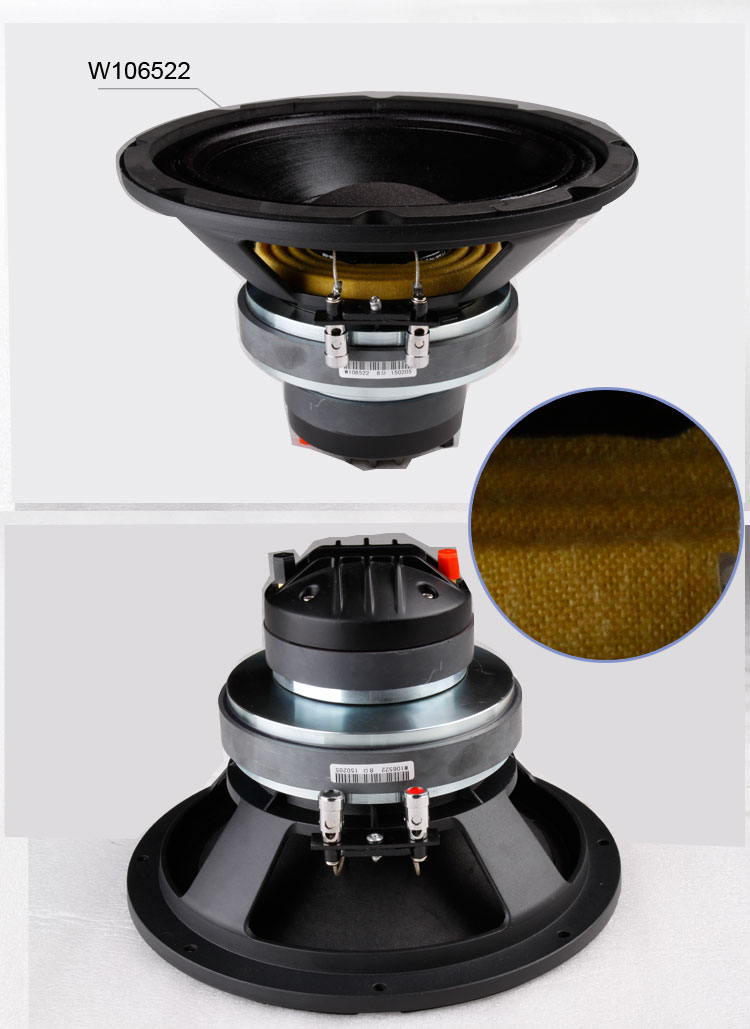

W106522

Coaxial

GENERAL SPECIFICATIONS

Nominal Diameter

250/10

mm/inch

Rated impedance

8

ohm

Frequency Range

63-18000

Hz

LF unit

Power handing capacity

250

watts

Sensitivity   (1w/1m)

95

dB

Voice Coil Diameter

65/2.5

mm/inch

Voice Coil Material

CCAR

HF unit

Power handing capacity

80

watts

Sensitivity   (1w/1m)

104

dB

Voice Coil Diameter

65/2.5

mm/inch

Voice Coil Material

Copper Clad Aluminium

THIELE-SMALL PARAMETERS

Resonance frequency

Fs

63

Hz

Dc resistance

Re

5.4

ohm

Mechanical factor

Qms

4.86

Electrical factor

Qes

0.44

Total factor

Qts

0.4

BL factor

BL

13

T.M

Effective Moving mass

Mms

33.4

g

Effective Cas air load

Vas

31

liters

Effective piston area

Sd

0.035

m^2

MOUNTING INFORMATION

Overall Diameter

φ267/φ10.51

mm/inch

Bolt Circle Diameter

φ251/φ9.88

mm/inch

Bolt Hole Diameter

8-φ6.5/8-φ0.26

mm/inch

Mount Baffle Cut-out

φ233/9.21

mm/inch

Depth

177/6.97

mm/inch

SHIPPING INFORMATION

Net Weight

6.4

kg

Shipping Weight

8.1

kg

Package Size

310*310*212

mm
