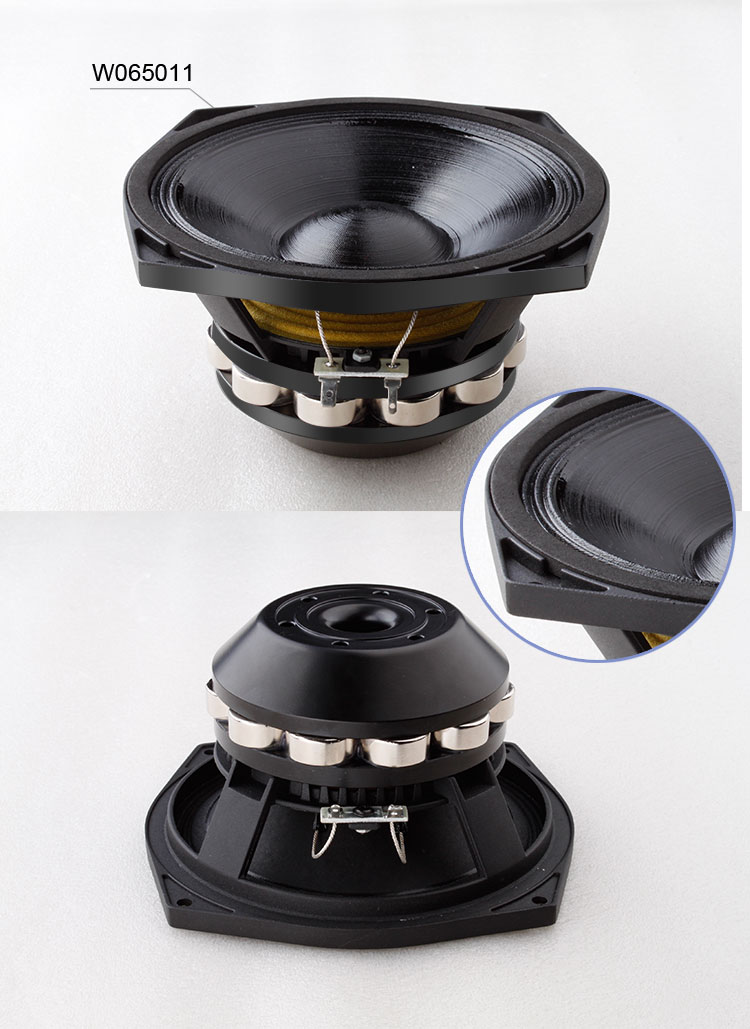

MODEL

W065011

TYPE

MID-BASS

GENERAL SPECIFICATIONS

Nominal Diameter

165/6.5

mm/inch

Rated impedance

8

ohm

Power handing capacity

120

watts

Sensitivity  (1W/1m)

95

dB

Frequency Range

Fs-6000

Hz

Voice Coil Diameter

50/2

mm/inch

Voice Coil Material

Aluminium Edge Wound

Number of layer

1

Kind of layer

outside

THIELE-SMALL PARAMETERS

Resonance frequency

Fs

130

Hz

Dc resistance

Re

6.8

ohm

Mechanical factor

Qms

2.1

Electrical factor

Qes

0.48

Total factor

Qts

0.39

BL factor

BL

11.4

T.M

Effective Moving mass

Mms

11.2

g

Effective Cas air load

Vas

4

liters

Effective piston area

Sd

0.014

m^2

MOUNTING INFORMATION

Overall Diameter

187*162/7.36*6.38

mm/inch

Bolt Circle Diameter

φ171.5/φ6.7

mm/inch

Bolt Hole Diameter

4-φ5/4-φ0.1.97

mm/inch

Mount Baffle Cut-out

φ145/φ5.71

mm/inch

Depth

86/3.39

mm/inch

SHIPPING INFORMATION

Net Weight       (6 units)

12.3

kg

Shipping Weight (6 units)

13.8

kg

Package Size      (6 units)

550X190X220

mm
