主要特點

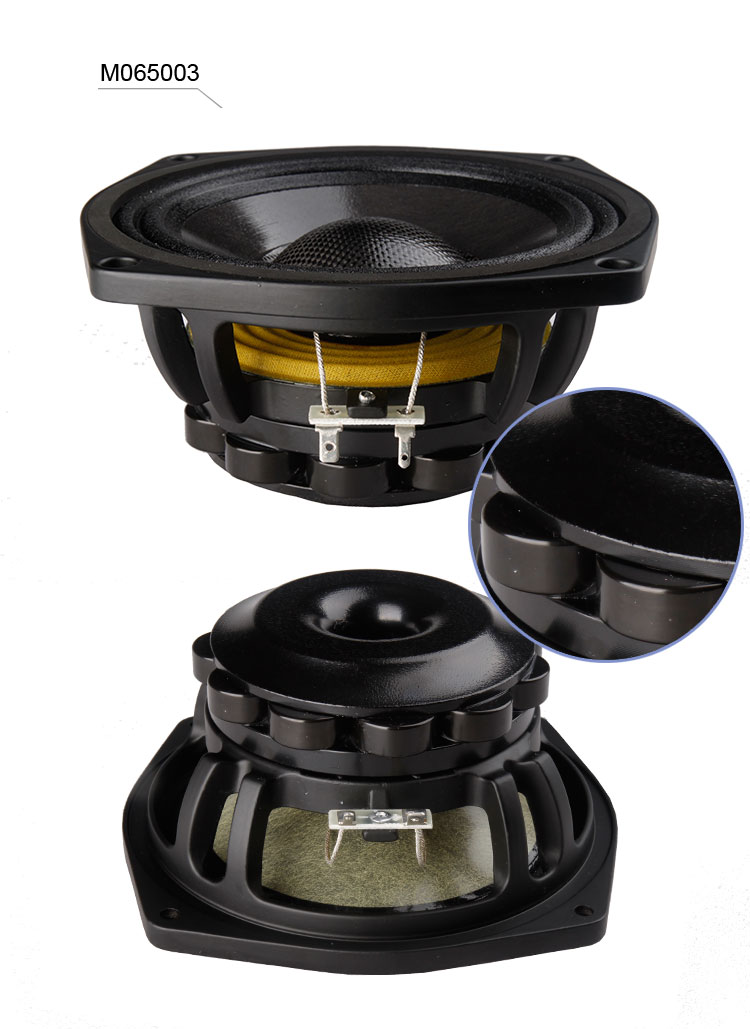

| MODEL | M065003 | ||
| TYPE | MID-BASS | ||
| Nominal Diameter | 165/6 | mm/inch | |
| Rated impedance | 8 | ohm | |
| Power handing capacity | 150 | watts | |
| Sensitivity(1w/1m) | 95 | dB | |
| Frequency Range | FS-9000 | Hz | |
| Voice Coil Diameter | 50/2 | mm/inch | |
| Voice Coil Material | Copper Clad Aluminium | ||
| Number of layer | 2 | ||
| Kind of layer | outside | ||
| Resonance frequency | Fs | 90 | Hz |
| Dc resistance | Re | 5.3 | ohm |
| Mechanical factor | Qms | 3.44 | |
| Electrical factor | Qes | 0.24 | |
| Total factor | Qts | 0.23 | |
| BL factor | BL | 13.7 | T.M |
| Effective Moving mass | Mms | 14.61 | g |
| Effective Cas air load | Vas | 5.015 | liters |
| Effective piston area | Sd | 0.0131 | m^2 |
| Overall Diameter | Φ186*161/Φ7.7*6.3 | mm/inch | |
| Bolt Circle Diameter | Φ172/Φ6.8 | mm/inch | |
| Bolt Hole Diameter | 4-Φ5.2/4-Φ0.2 | mm/inch | |
| Mount Baffle Cut-out | Φ145 /Φ5.7 | mm/inch | |
| Depth | 78.5/3.09 | mm/inch | |
| Net Weight (6 unit) | 9.6 | kg | |
| Shipping Weight (6 unit) | 11.6 | kg | |
| Package Size (6 unit) | 550*190*220 | mm |
