Products

Coaxial Speaker

W127522

Key Features

+86-020-84847046

Description





MODEL

TYPE

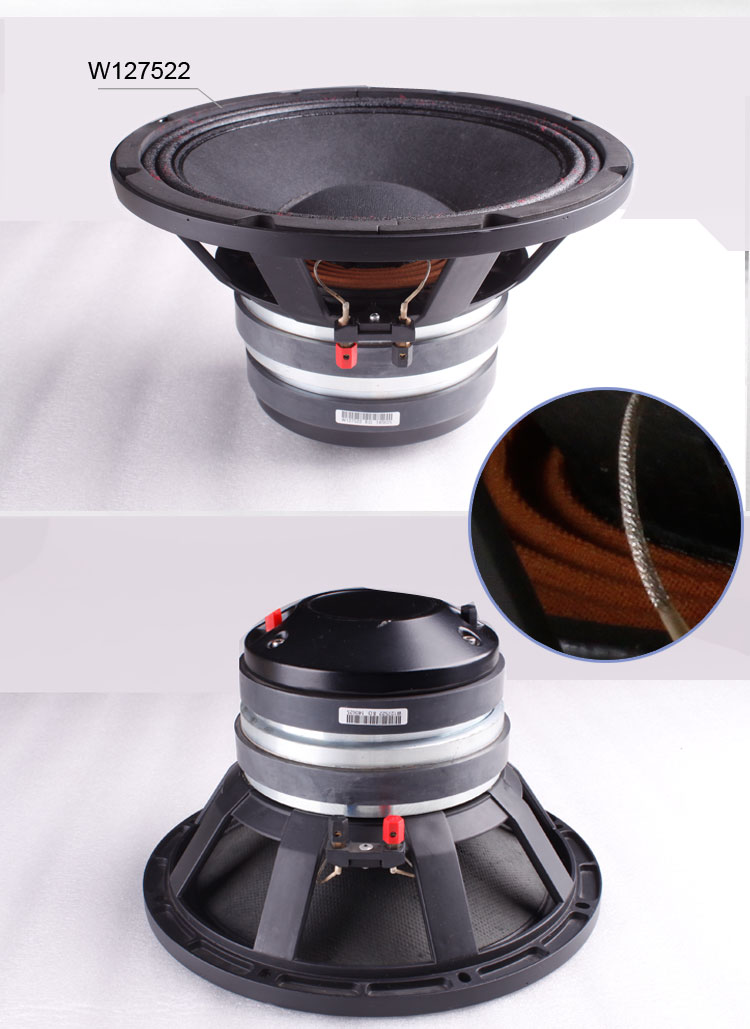

W127522

Coaxial





GENERAL SPECIFICATIONS

Nominal Diameter

300/12

mm/inch

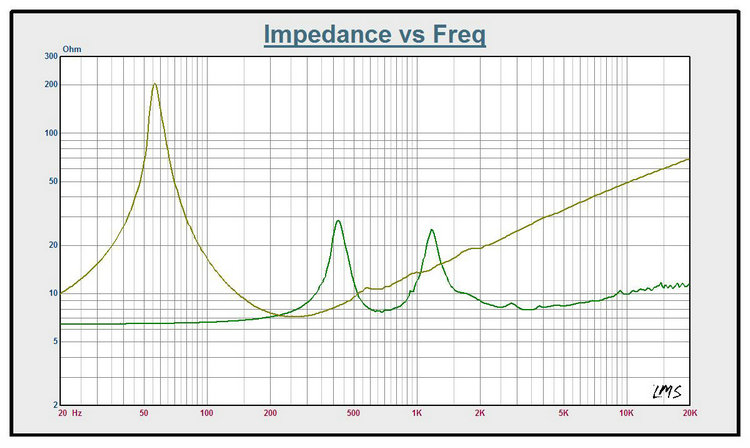

Rated impedance

8

ohm

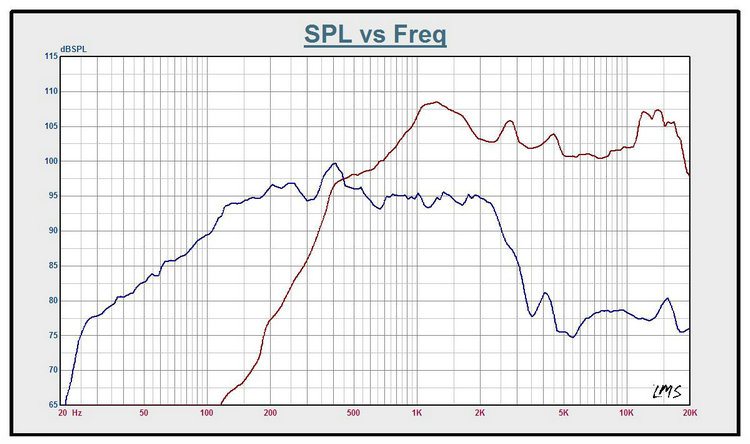

Frequency Range

55-18000

Hz



LF unit







Power handing capacity

350

watts



Sensitivity  (1w/1m)

97

dB



Voice Coil Diameter

75/3.0

mm/inch



Voice Coil Material

Copper





HF unit







Power handing capacity

80

watts



Sensitivity  (1w/1m)

103

dB



Voice Coil Diameter

75/3.0

mm/inch



Voice Coil Material

Copper Clad Aluminium





THIELE-SMALL PARAMETERS

Resonance frequency

Fs

55

Hz

Dc resistance

Re

5.6

ohm

Mechanical factor

Qms

15.2



Electrical factor

Qes

0.27



Total factor

Qts

0.26



BL factor

BL

19.4

T.M

Effective Moving mass

Mms

51

g

Effective Cas air load

Vas

68

liters

Effective piston area

Sd

0.054

m^2

MOUNTING INFORMATION

Overall Diameter

φ315/φ12.4

mm/inch



Bolt Circle Diameter

φ296/φ11.7

mm/inch



Bolt Hole Diameter

8-9.5*7.5/8-0.37*0.30

mm/inch



Mount Baffle Cut-out

φ281/φ11.1

mm/inch



Depth

194/7.6

mm/inch



SHIPPING INFORMATION

Net Weight       (1 unit)

11.7

kg



Shipping Weight (1 unit)

13.2

kg



Package Size     (1 unit)

350X350X235

mm
