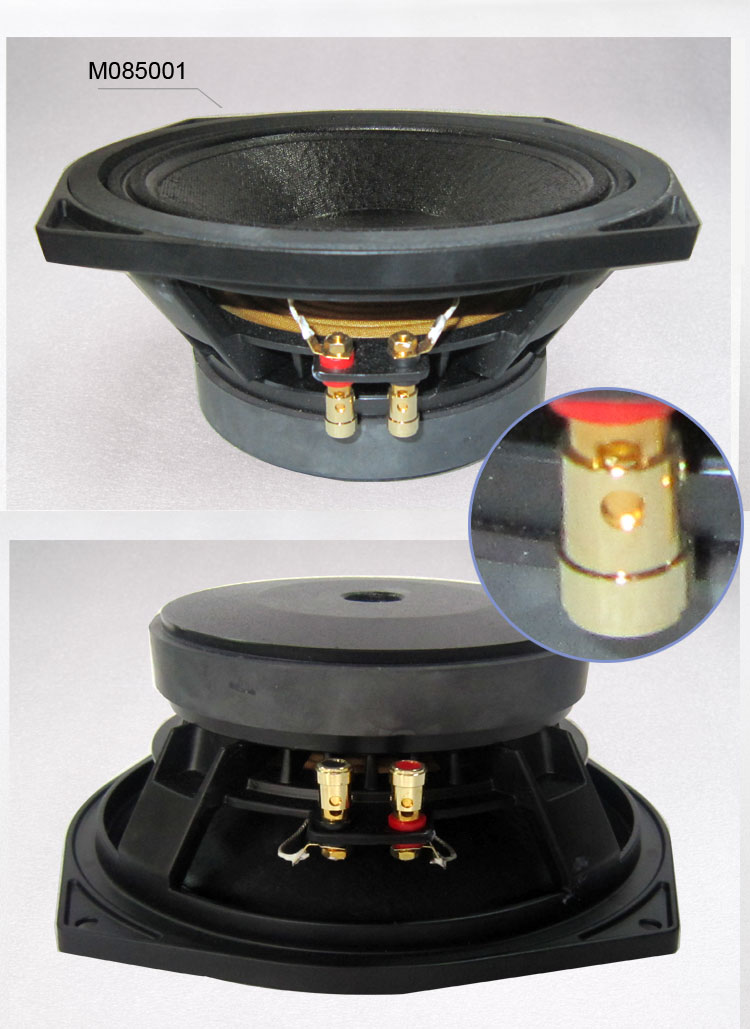

MODEL

M085001

TYPE

MIDRANGE

GENERAL SPECIFICATIONS

Nominal Diameter

200/8

mm/inch

Rated impedance

8

ohm

Power handing capacity

120

watts

Sensitivity  (1w/1m)

93

dB

Frequency Range

Fs-6000

Hz

Voice Coil Diameter

50/2

mm/inch

Voice Coil Material

Aluminium Edge Wound

Number of layer

1

Kind of layer

outside

THIELE-SMALL PARAMETERS

Resonance frequency

Fs

99

Hz

Dc resistance

Re

6.8

ohm

Mechanical factor

Qms

4

Electrical factor

Qes

0.72

Total factor

Qts

0.61

BL factor

BL

10

T.M

Effective Moving mass

Mms

18

g

Effective Cas air load

Vas

9.6

liters

Effective piston area

Sd

0.022

m^2

MOUNTING INFORMATION

Overall Diameter

Ф210x210/8.3x8.3

mm/inch

Bolt Circle Diameter

Ф218/Ф8.6

mm/inch

Bolt Hole Diameter

4-Ф5.3/4-Ф0.21

mm/inch

Mount Baffle Cut-out

Ф190/Φ7.5

mm/inch

Depth

104/4.1

mm/inch

SHIPPING INFORMATION

Net Weight        (4 units)

13.2

kg

Shipping Weight (4  units)

15.2

kg

Package Size     (4  units)

480*245*265

mm
