LF Speaker Ferrite

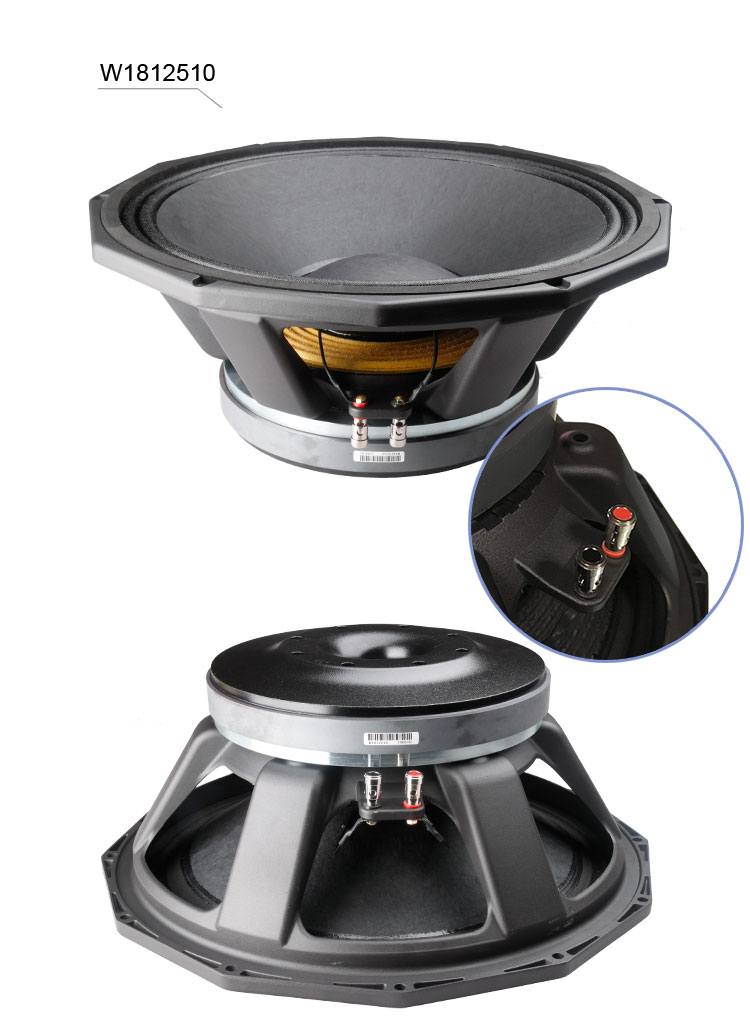

W1812510

主要特點

020-84847046

產品介紹




MODELTYPE
W1812510SUB-WOOFER
GENERAL SPECIFICATIONS
Nominal Diameter465/18mm/inch
Rated impedance8ohm
Power handing capacity1000watts
Sensitivity97dB/1w/1m
Frequency RangeFs-1800Hz
Voice Coil Diameter125/5mm/inch
Voice Coil Materialcopper
Number of layer2
Kind of layeroutside/inside
THIELE-SMALL PARAMETERS
Resonance frequencyFs42Hz
Dc resistanceRe5.2ohm
Mechanical factorQms9.18
Electrical factorQes0.336
Total factorQts0.327
BL factorBL31T.M
Effective Moving massMms232g
Effective Cas air loadVas115liters
Effective piston areaSd0.1164m^2
MOUNTING INFORMATION
Overall DiameterΦ471/Φ18.54mm/inch
Bolt Circle DiameterΦ452.5/Φ17.81mm/inch
Bolt Hole Diameter8-Φ8.7/8-Φ0.34mm/inch
Mount Baffle Cut-outΦ412/16.22mm/inch
Depth199/7.83mm/inch
SHIPPING INFORMATION
Net Weight20kg
Shipping Weight21.5kg
Package Size500X500X240/1PCSmm
