主要特點

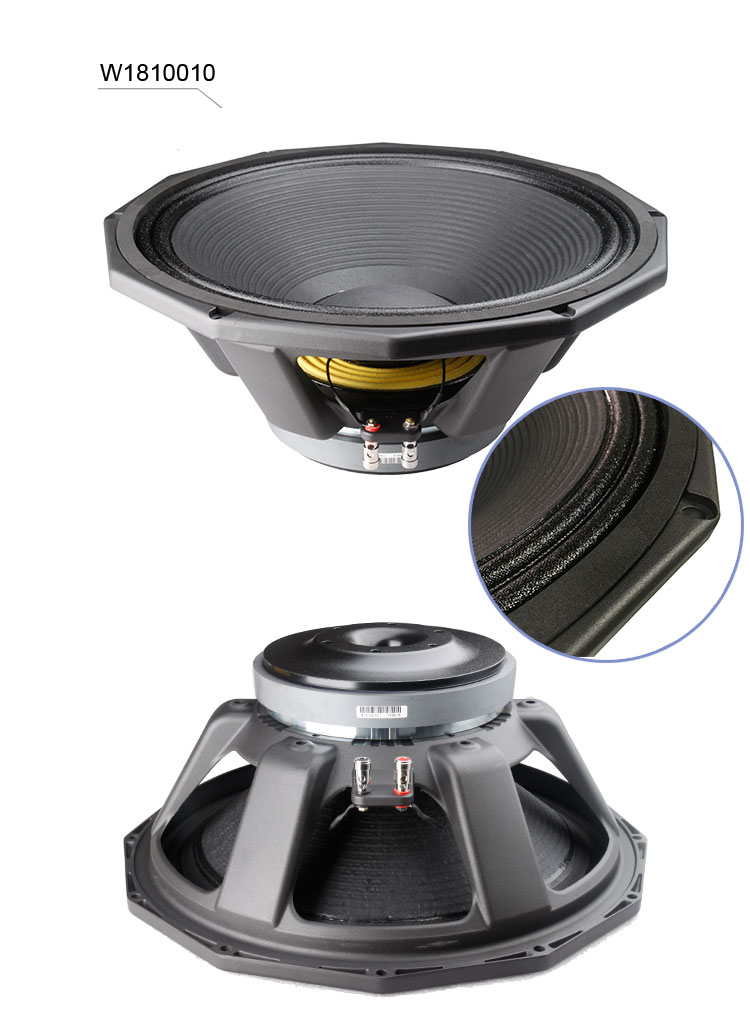

| MODEL | W1810010 | ||
| TYPE | SUB-WOOFER | ||
| Nominal Diameter | 465/18 | mm/inch | |
| Rated impedance | 8 | ohm | |
| Power handing capacity (AES) | 800 | watts | |
| Sensitivity(1w/1m) | 96 | dB | |
| Frequency Range | Fs-2000 | Hz | |
| Voice Coil Diameter | 100/4 | mm/inch | |
| Voice Coil Material | Copper | ||
| Number of layer | 2 | ||
| Kind of layer | inside/outside | ||
| Resonance frequency | Fs | 43 | Hz |
| Dc resistance | Re | 5.2 | ohm |
| Mechanical factor | Qms | 6.373 | |
| Electrical factor | Qes | 0.475 | |
| Total factor | Qts | 0.4421 | |
| BL factor | BL | 23.8 | T.M |
| Effective Moving mass | Mms | 189 | g |
| Effective Cas air load | Vas | 136.1 | liters |
| Effective piston area | Sd | 0.1176 | m^2 |
| Overall Diameter | Φ471/Φ18.54 | mm/inch | |
| Bolt Circle Diameter | Φ452.5/Φ17.8 | mm/inch | |
| Bolt Hole Diameter | 8-Φ8.7/8-0.34 | mm/inch | |
| Mount Baffle Cut-out | Φ412/Φ16.22 | mm/inch | |
| Depth | 195/7.68 | mm/inch | |
| Net Weight (1 unit) | 12.5 | kg | |
| Shipping Weight (1 unit) | 14 | kg | |
| Package Size (1 unit) | 495X485X240 | mm |
