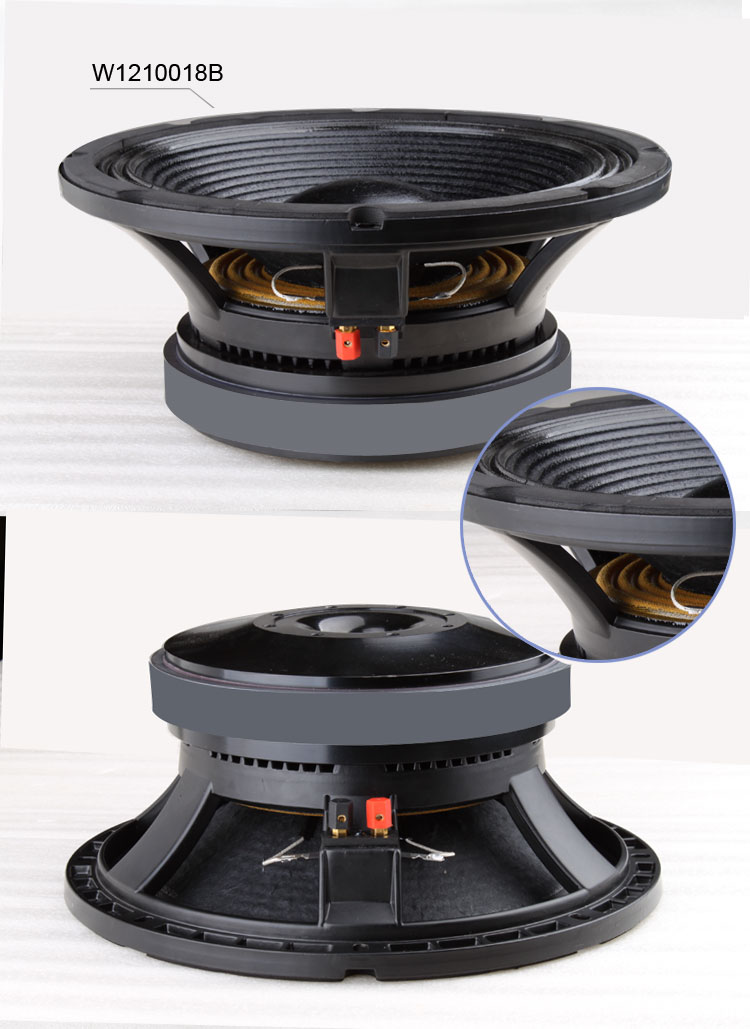

MODEL

W1210018B

TYPE

WOOFER

GENERAL SPECIFICATIONS

Nominal Diameter

300/12

mm/inch

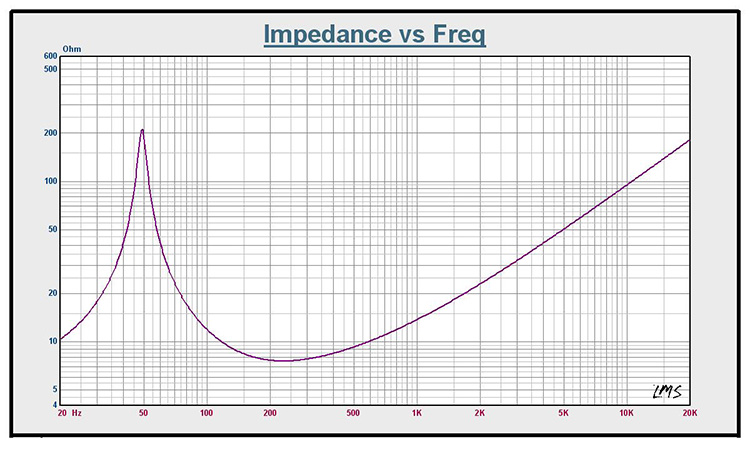

Rated impedance

8

ohm

Power handing capacity

500

watts

Sensitivity(1w/1m)

95

dB

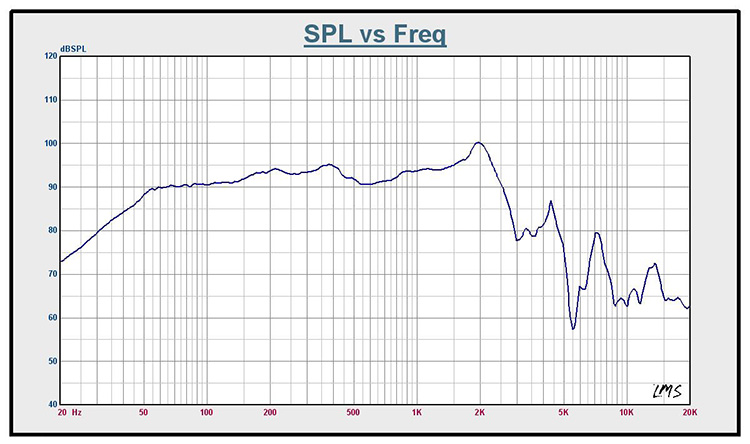

Frequency Range

Fs-2000

Hz

Voice Coil Diameter

100/4

mm/inch

Voice Coil Material

Copper

Number of layer

2

Kind of layer

inside/outside

THIELE-SMALL PARAMETERS

Resonance frequency

Fs

47

Hz

Dc resistance

Re

5.3

ohm

Mechanical factor

Qms

8.95

Electrical factor

Qes

0.29

Total factor

Qts

0.28

BL factor

BL

23.1

T.M

Effective Moving mass

Mms

97

g

Effective Cas air load

Vas

49

liters

Effective piston area

Sd

0.055

m^2

MOUNTING INFORMATION

Overall Diameter

Φ320/Φ12.6

mm/inch

Bolt Circle Diameter

Φ300/Φ12

mm/inch

Bolt Hole Diameter

8-Φ6.5x10/8-Φ0.26x0.39

mm/inch

Mount Baffle Cut-out

Φ290/ Φ11.5

mm/inch

Depth

147/5.8

mm/inch

SHIPPING INFORMATION

Net Weight        ( 1 units)

11

kg

Shipping Weight     ( 1 units)

12

kg

Package Size       ( 1 units)

335X335X170

mm
