MODEL

W1510043

TYPE

SUBWOOFER

GENERAL SPECIFICATIONS

Nominal Diameter

380/15

mm/inch

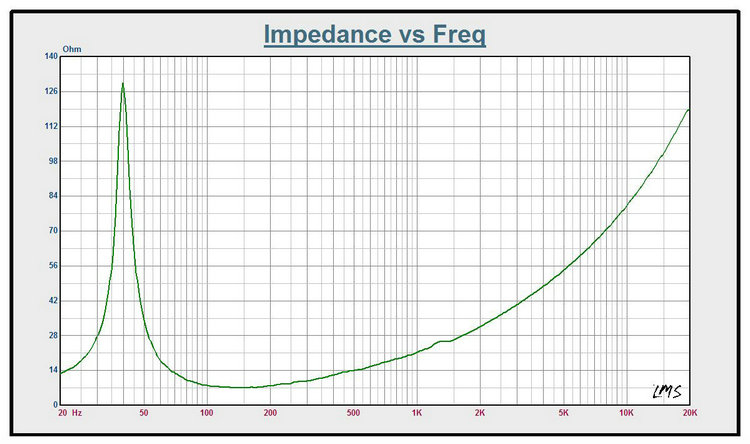

Rated impedance

8

ohm

Power handing capacity

800

watts

Sensitivity(1w/1m)

94

dB

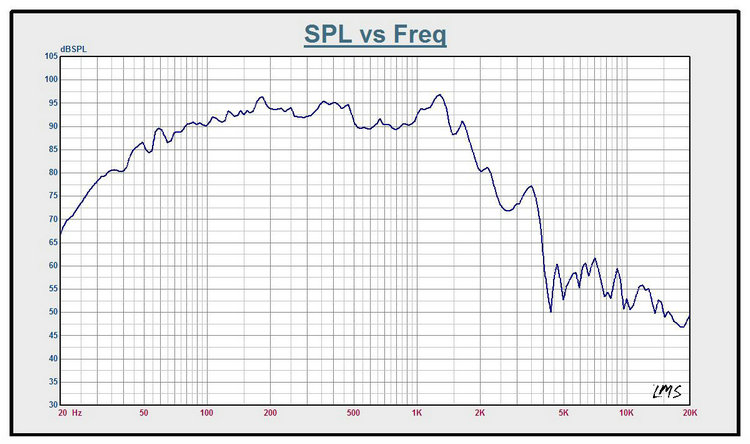

Frequency Range

Fs-1500

Hz

Voice Coil Diameter

100/4

mm/inch

Voice Coil Material

copper

Number of layer

2

Kind of layer

outside/inside

THIELE-SMALL PARAMETERS

Resonance frequency

Fs

39

Hz

Dc resistance

Re

5.4

ohm

Mechanical factor

Qms

8.4

Electrical factor

Qes

0.36

Total factor

Qts

0.34

BL factor

BL

25.4

T.M

Effective Moving mass

Mms

171

g

Effective Cas air load

Vas

98

liters

Effective piston area

Sd

0.087

m^2

MOUNTING INFORMATION

Overall Diameter

φ394/ φ15.5

mm/inch

Bolt Circle Diameter

φ376/ φ14.8

mm/inch

Bolt Hole Diameter

8-9.5x6.5/8-0.37x0.26

mm/inch

Mount Baffle Cut-out

φ357/φ14.1

mm/inch

Depth

171/6.7

mm/inch

SHIPPING INFORMATION

Net Weight        ( 1 unit)

12.5

kg

Shipping Weight ( 1 unit)

14

kg

Package Size      ( 1 unit)

425X410X205

mm
