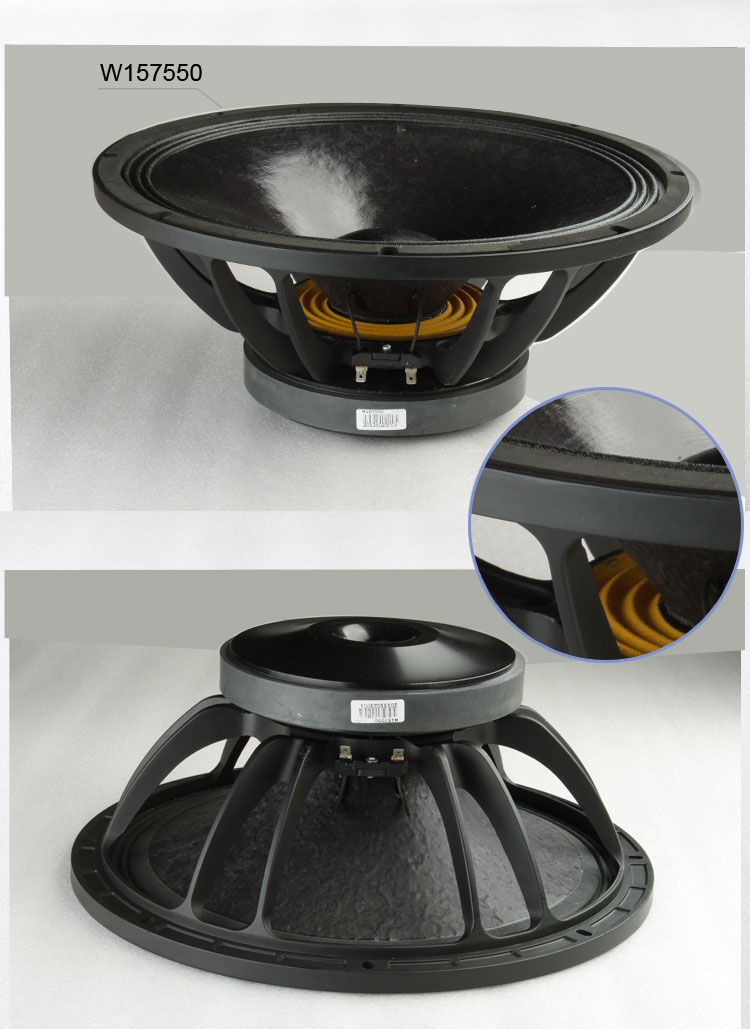

MODEL

W157550

TYPE

Woofer

GENERAL SPECIFICATIONS

Nominal Diameter

380/15

mm/inch

Rated impedance

8

ohm

Power handing capacity

500

watts

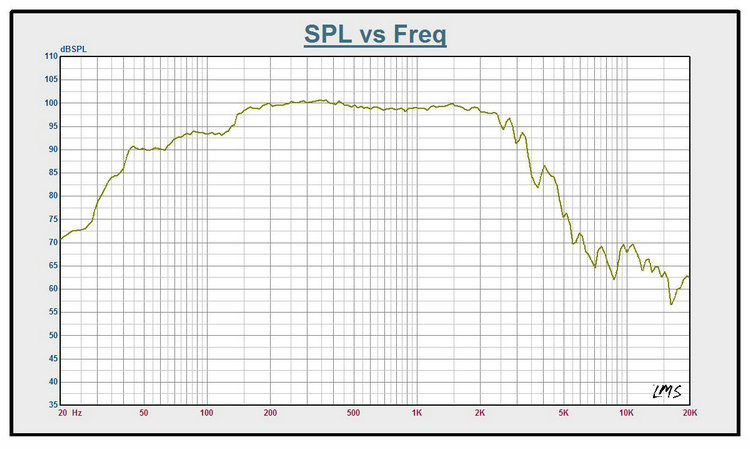

Sensitivity(1w/1m)

98.5

dB

Frequency Range

Fs-3000

Hz

Voice Coil Diameter

75/3

mm/inch

Voice Coil Material

copper

Number of layer

2

Kind of layer

outside/inside

THIELE-SMALL PARAMETERS

Resonance frequency

Fs

40

Hz

Dc resistance

Re

5

ohm

Mechanical factor

Qms

8.86

Electrical factor

Qes

0.27

Total factor

Qts

0.26

BL factor

BL

22

T.M

Effective Moving mass

Mms

96

g

Effective Cas air load

Vas

167

liters

Effective piston area

Sd

0.087

m^2

MOUNTING INFORMATION

Overall Diameter

φ394/φ15.5

mm/inch

Bolt Circle Diameter

φ377/φ14.8

mm/inch

Bolt Hole Diameter

8-9*7/8-0.35*0.28

mm/inch

Mount Baffle Cut-out

φ356/φ14

mm/inch

Depth

175/6.9

mm/inch

SHIPPING INFORMATION

Net Weight        ( 1 unit)

9

kg

Shipping Weight ( 1 unit)

10.5

kg

Package Size      ( 1 unit)

425X410X205

mm
