主要特點
| MODEL | TYPE | ||

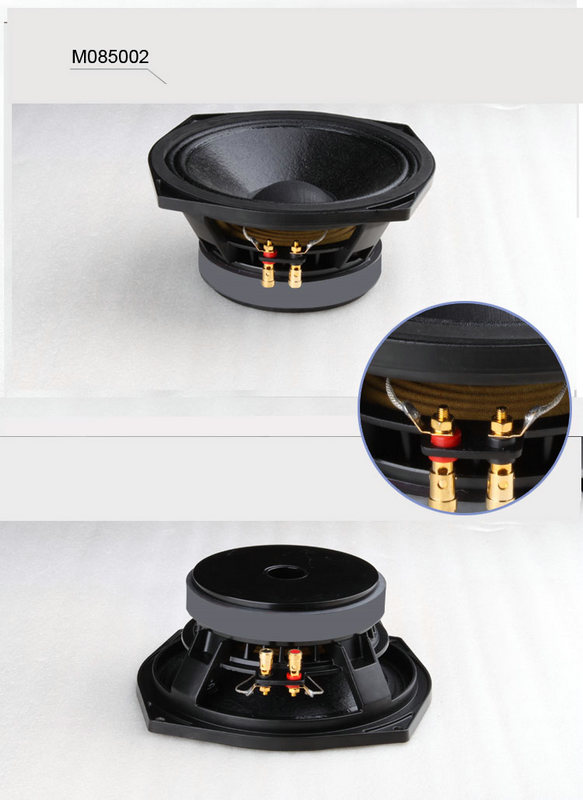

| M085002 | MID-BASS | ||
| GENERAL SPECIFICATIONS | |||
| Nominal Diameter | 200/8 | mm/inch | |
| Rated impedance | 8 | ohm | |
| Power handing capacity | 120 | watts | |
| Sensitivity | 95 | dB/1w/1m | |
| Frequency Range | Fs-10000 | Hz | |
| Voice Coil Diameter | 50/2 | mm/inch | |
| Voice Coil Material | Copper Clad Aluminium | ||
| Number of layer | 2 | ||
| Kind of layer | Outside | ||
| THIELE-SMALL PARAMETERS | |||
| Resonance frequency | Fs | 95 | Hz |
| Dc resistance | Re | 6.8ohm | ohm |
| Mechanical factor | Qms | 8.6 | |
| Electrical factor | Qes | 0.52 | |
| Total factor | Qts | 0.49 | |
| BL factor | BL | 11.8 | T.M |
| Effective Moving mass | Mms | 18 | g |
| Effective Cas air load | Vas | 10.7 | liters |
| Effective piston area | Sd | 0.0219 | m^2 |
| MOUNTING INFORMATION | |||
| Overall Diameter | Φ209/Φ8.26 | mm/inch | |
| Bolt Circle Diameter | Φ196/Φ7.74 | mm/inch | |
| Bolt Hole Diameter | 4-Φ5*8/4-Φ0.2*0.32 | mm/inch | |
| Mount Baffle Cut-out | 179/7.1 | mm/inch | |
| Depth | 98/3.67 | mm/inch | |
| SHIPPING INFORMATION | |||
| Net Weight (6 units) | 24 | kg | |
| Shipping Weight (6 units) | 27 | kg | |
| Package Size (6 units) | 570X250X250 | mm | |
