主要特點
| MODEL | TYPE | ||

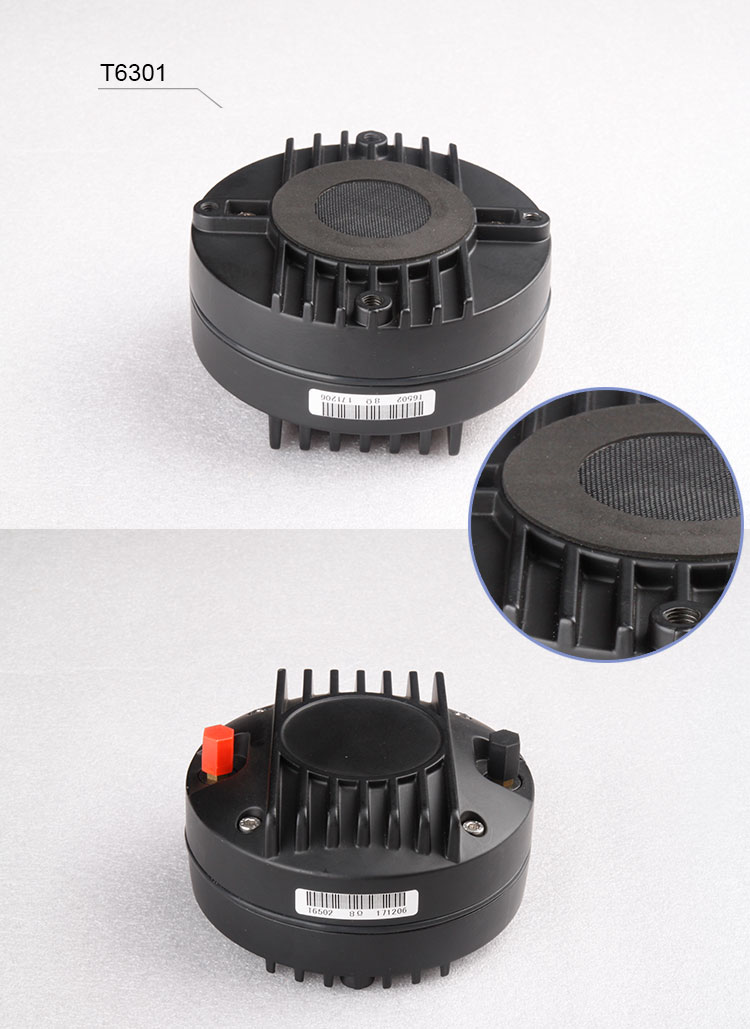

| T6301 | DRIVER | ||
| GENERAL SPECIFICATIONS | |||
| Exit Throat Diameter | 36/1.4 | mm/inch | |
| Rated impedance | 8 | ohm | |
| Power handing capacity | 70 | watts | |
| Sensitivity | 106 | dB/1w/1m | |

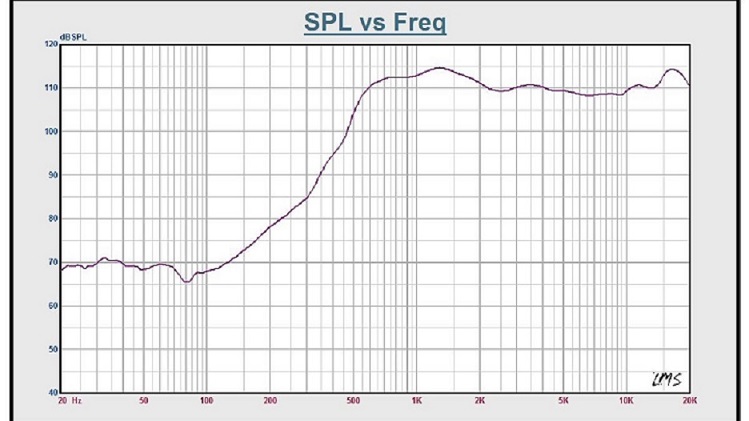

| Frequency Range | 1500-20000 | Hz | |
| Diaphragm material | Titanium | ||
| Suspension material | Mylar | ||
| Voice Coil Diameter | 63/2.5 | mm/inch | |
| Dc resistance | 6.2 | ohm | |
| Voice Coil Material | Copper Clad Aluminum | ||
| Number of layer | 1 | ||
| Kind of layer | Outside | ||
| Magnet | Neodymium | ||
| MOUNTING INFORMATION | |||
| Overall Diameter | φ116/ φ4.64 | mm/inch | |
| Bolt Circle Diameter | φ101.6/φ4.064 | mm/inch | |
| Bolt Hole Diameter | 4-M6/4-0.24 | mm/inch | |
| Depth | 60/2.01 | mm/inch | |
| SHIPPING INFORMATION | |||
| Net Weight (1 units) | 1.8 | kg | |
| Shipping Weight (1 units) | 3 | kg | |
| Package Size (1 units) | 131*127*72 | mm | |
