主要特點
| MODEL | TYPE | ||

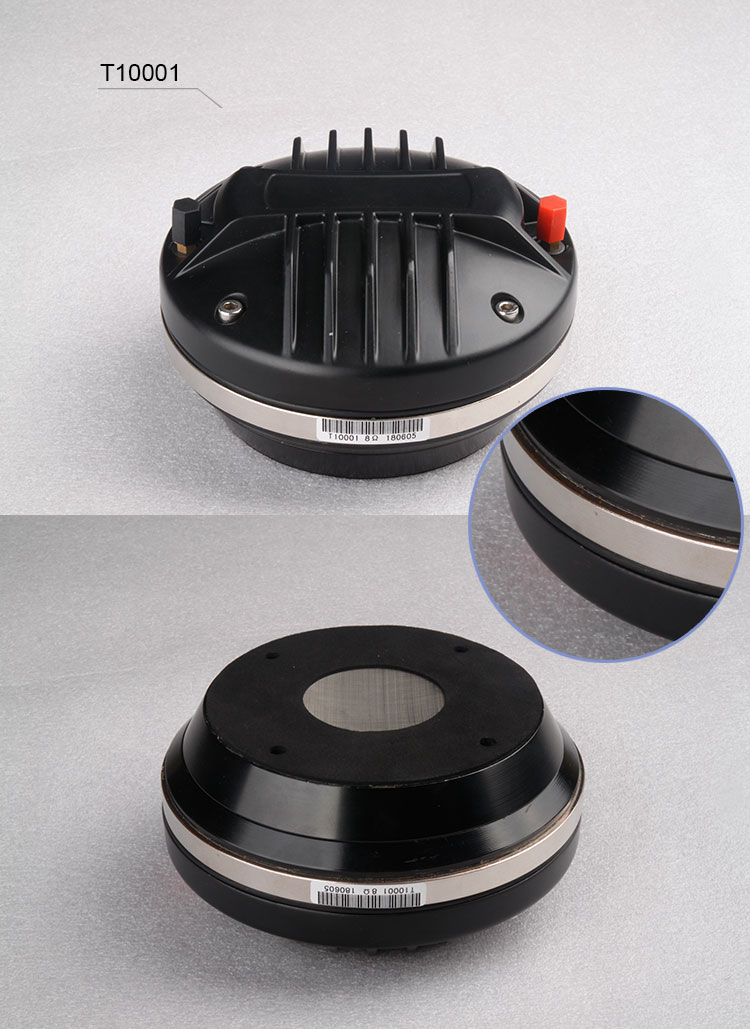

| T10001 | DRIVER | ||
| GENERAL SPECIFICATIONS | |||
| Exit Throat Diameter | 50/2 | mm/inch | |
| Rated impedance | 8 | ohm | |
| Power handing capacity | 120 | watts | |
| Sensitivity | 106 | dB/1w/1m | |

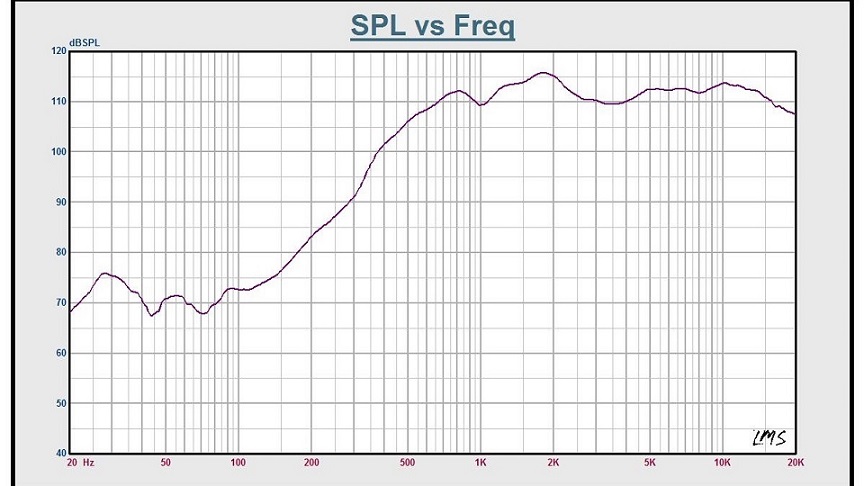

| Frequency Range | 800-18000 | Hz | |
| Diaphragm material | Titanium | ||
| Suspension material | Titanium | ||
| Voice Coil Diameter | 100/4 | mm/inch | |
| Dc resistance | 6 | ohm | |
| Voice Coil Material | Aluminum | ||
| Number of layer | 1 | ||
| Kind of layer | Outside | ||
| Magnet | Neodymium | ||
| MOUNTING INFORMATION | |||
| Overall Diameter | φ154/ φ6.16 | mm/inch | |
| Bolt Circle Diameter | φ101.6/φ4.064 | mm/inch | |
| Bolt Hole Diameter | 4-M6/4-0.24 | mm/inch | |
| Depth | 78/3.12 | mm/inch | |
| SHIPPING INFORMATION | |||
| Net Weight (1 units) | 4.34 | kg | |
| Shipping Weight (1 units) | 5.8 | kg | |
| Package Size (1 units) | 182*178*86 | mm | |
