LF Speaker Ferrite

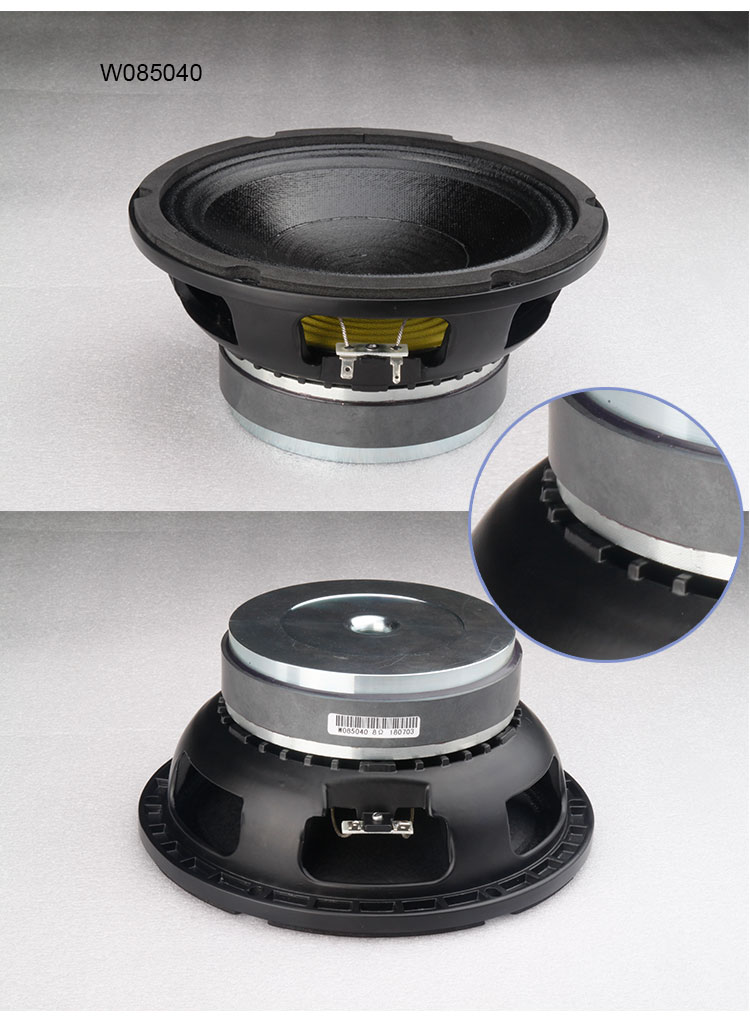

W085040

主要特點

020-84847046

產品介紹





MODELW085040
TYPEMID-BASS
Nominal Diameter200/8mm/inch
Rated impedance8ohm
Power handing capacity150watts
Sensitivity95dB/1w/1m

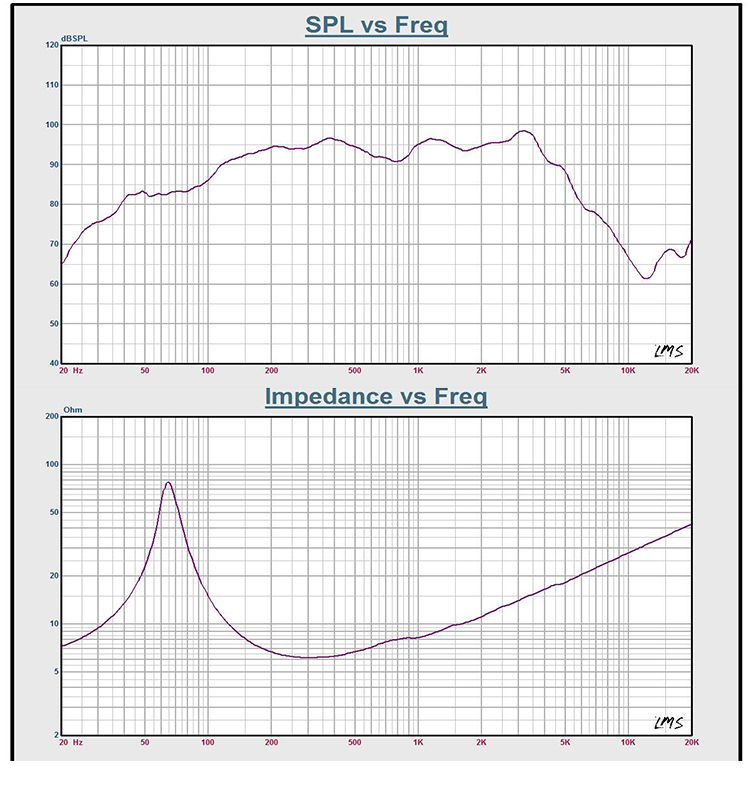

Frequency RangeFs-5200Hz
Voice Coil Diameter50/2mm/inch
Voice Coil Materialaluminum
Number of layer2
Kind of layerinside/outside
Resonance frequencyFs64Hz
Dc resistanceRe5.1ohm
Mechanical factorQms5.77
Electrical factorQes0.4
Total factorQts0.38
BL factorBL10.82T.M
Effective Moving massMms22.53g
Effective Cas air loadVas19.02liters
Effective piston areaSd0.0224m^2
Overall Diameterφ210/φ8.27mm/inch
Bolt Circle Diameterφ196/φ7.72mm/inch
Bolt Hole Diameter8-φ6/8-φ0.24mm/inch
Mount Baffle Cut-outφ184/7.24mm/inch
Depth99/3.9mm/inch
Net Weight (4 unit)14kg
Shipping Weight (4unit)16kg
Package Size (4 unit)480*245*265mm
