LF Speaker Ferrite

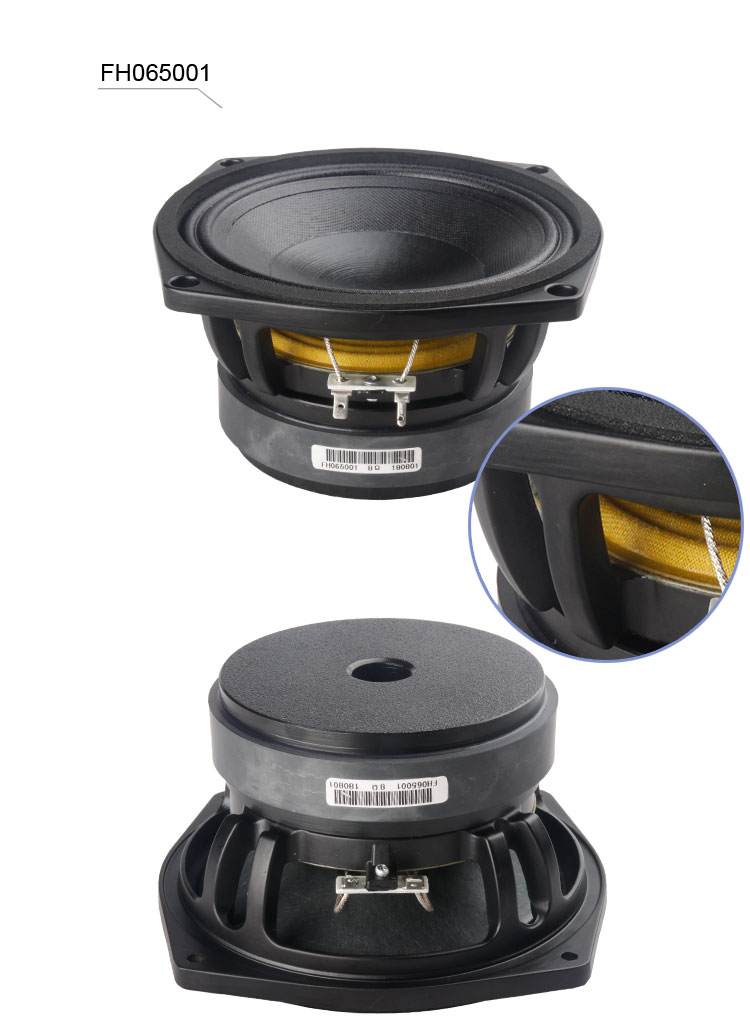

FH065001

主要特點

020-84847046

產品介紹





MODELFH065001
TYPEMID-BASS
Nominal Diameter165/6.5mm/inch
Rated impedance8ohm
Power handing capacity120watts
Sensitivity(1w/1m)92dB
Frequency RangeFS-8000Hz
Voice Coil Diameter50/2mm/inch
Voice Coil MaterialCopper Clad Aluminium
Number of layer2
Kind of layeroutside
Resonance frequencyFs92Hz
Dc resistanceRe5.4ohm
Mechanical factorQms8.569
Electrical factorQes0.69
Total factorQts0.62
BL factorBL8.6T.M
Effective Moving massMms15.3g
Effective Cas air loadVas4.8liters
Effective piston areaSd0.0135m^2
Overall DiameterΦ186*161/Φ7.7*6.3mm/inch
Bolt Circle DiameterΦ172/Φ6.8mm/inch
Bolt Hole Diameter4-Φ5.2/4-Φ0.2mm/inch
Mount Baffle Cut-outΦ145 /Φ5.7mm/inch
Depth87/3.43mm/inch
Net Weight    (6 unit)14.4kg
Shipping Weight (6 unit)16kg
Package Size   (6 unit)550*190*220mm
