LF Speaker Ferrite

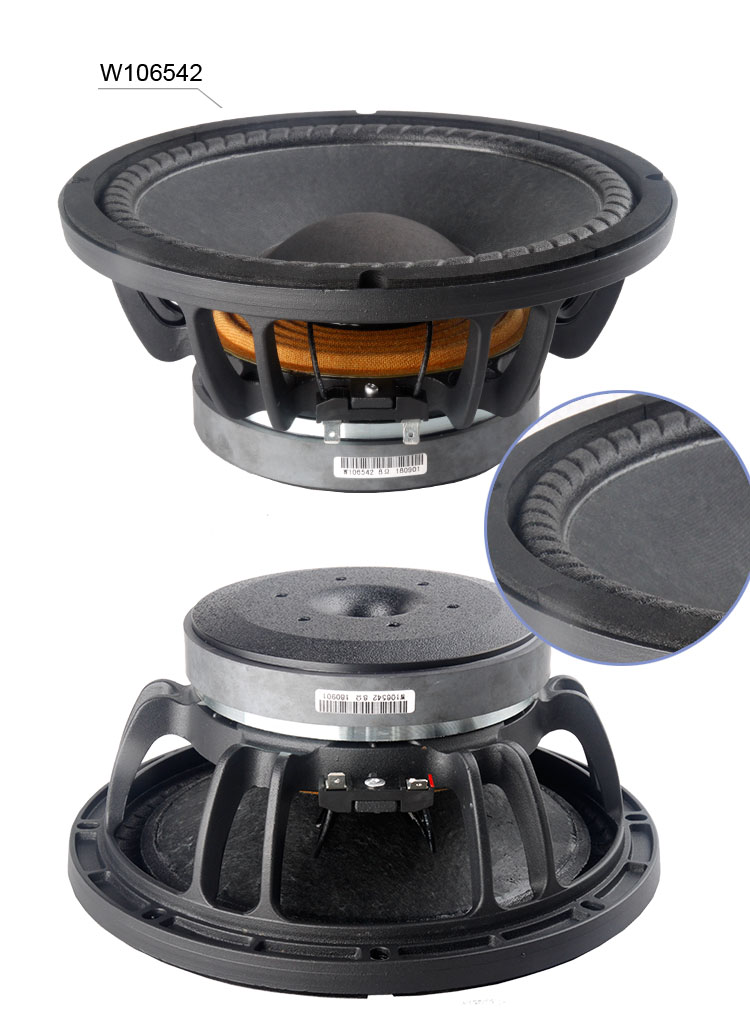

W106542

主要特點

020-84847046

產品介紹




MODELW106542
TYPEMID-BASS
Nominal Diameter250/10mm/inch
Rated impedance8ohm
Power handing capacity300watts

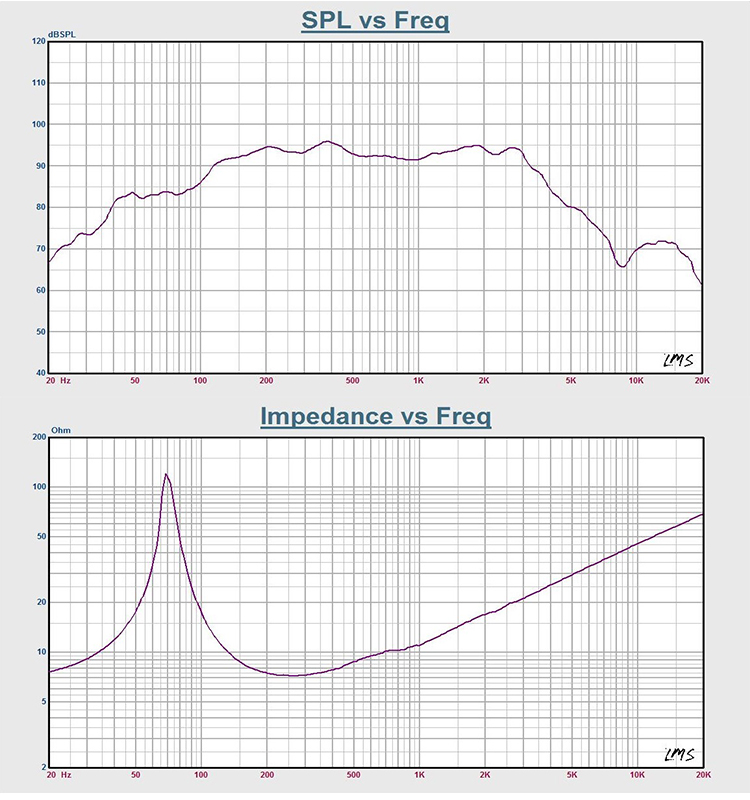

Sensitivity(1w/1m)95.5dB
Frequency RangeFs-3500Hz
Voice Coil Diameter65/2.5mm/inch
Voice Coil MaterialCopper
Number of layer2
Kind of layerinside/outside
Resonance frequencyFs69Hz
Dc resistanceRe6.1ohm
Mechanical factorQms8.9
Electrical factorQes0.47
Total factorQts0.45
BL factorBL16T.M
Effective Moving massMms41.47g
Effective Cas air loadVas23.45liters
Effective piston areaSd0.0363m^2
Overall DiameterΦ262/Φ10.31mm/inch
Bolt Circle DiameterΦ245/Φ9.65mm/inch
Bolt Hole Diameter8-Φ9.5*6.5/8-Φ0.37*0.26mm/inch
Mount Baffle Cut-outΦ233/Φ9.17mm/inch
Depth116/4.57mm/inch
Net Wei      (4 unit)16.8kg
Shipping Weight (4 unit)28.8kg
Package Size   (4 unit)500*280*300mm
