LF Speaker Ferrite

W126547

主要特點

020-84847046

產品介紹

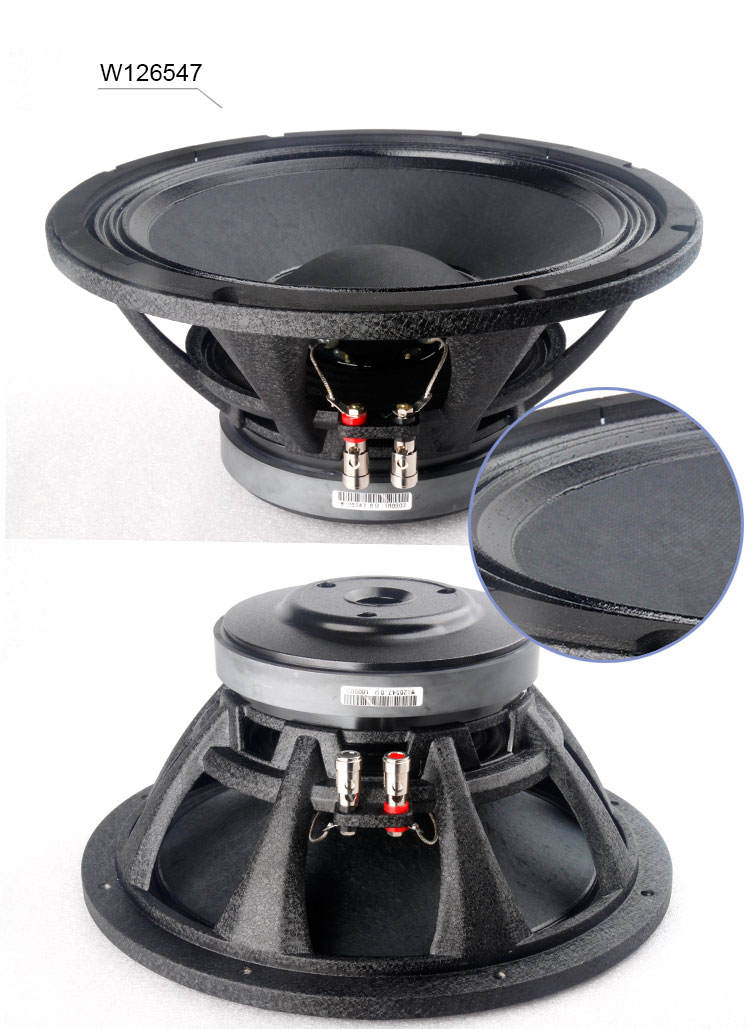

MODELW126547
TYPEMID-BASS
Nominal Diameter300/12mm/inch
Rated impedance8ohm
Power handing capacity300watts
Sensitivity(1w/1m)95.5dB

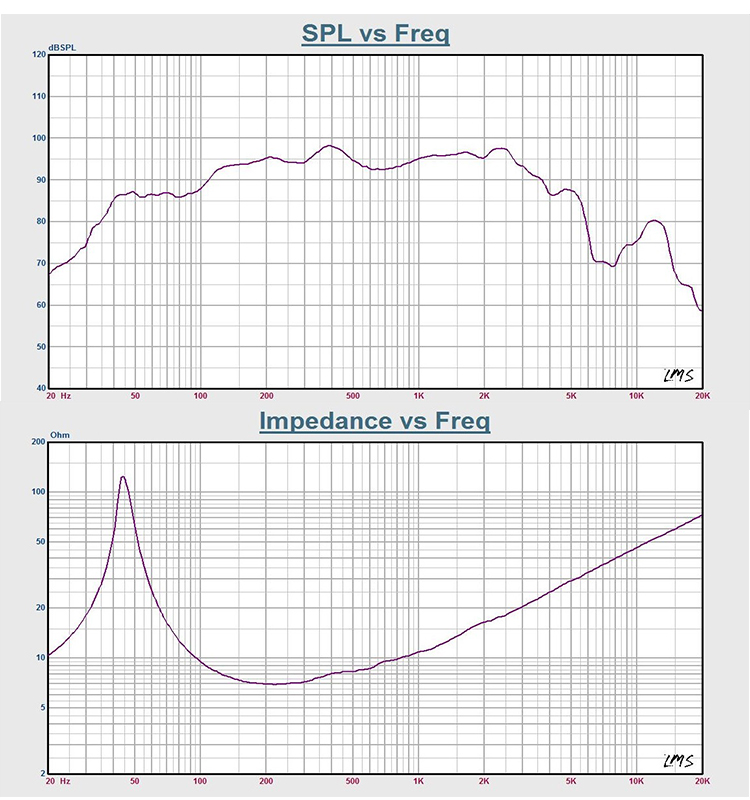

Frequency RangeFs-3500Hz
Voice Coil Diameter65/2.5mm/inch
Voice Coil MaterialCopper
Number of layer2
Kind of layerinside/outside
Resonance frequencyFs44Hz
Dc resistanceRe5.7ohm
Mechanical factorQms8.1
Electrical factorQes0.374
Total factorQts0.36
BL factorBL17T.M
Effective Moving massMms67.8g
Effective Cas air loadVas75.18liters
Effective piston areaSd0.0531m^2
Overall DiameterΦ323/Φ12.72mm/inch
Bolt Circle DiameterΦ302/Φ11.89mm/inch
Bolt Hole Diameter8-Φ6.5/8-Φ0.25mm/inch
Mount Baffle Cut-outΦ287/Φ11.30mm/inch
Depth152/5.98mm/inch
Net W       (2 unit)11.8kg
Shipping Weight (2 unit)14kg
Package Size   (2 unit)590*330*180mm
