HF Drivers Ferrite

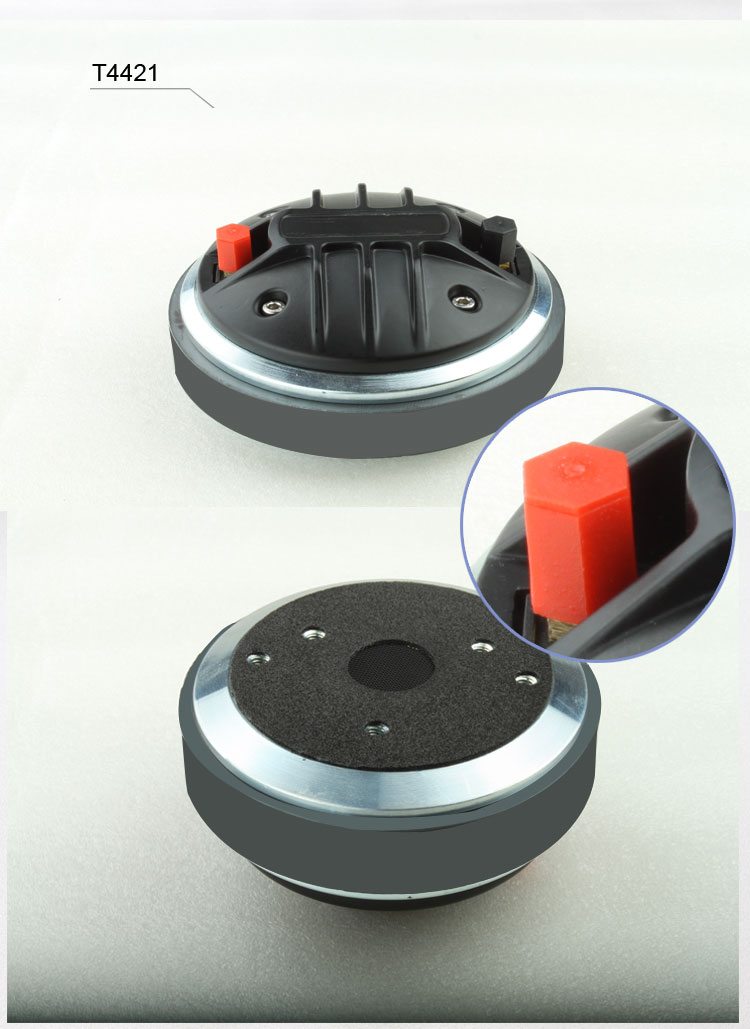

T4421

Key Features

+86-020-84847046

Description




MODEL

T4421



TYPE

DRIVER



THIELE-SMALL PARAMETERS





Exit Throat Diameter

25.4/1

mm/inch

Rated impedance

8

ohm

Power handing capacity

50

watts

Sensitivity(1w/1m)

107

dB

Frequency Range

1000-19K

Hz

Diaphragm material

PE



suspension material

PE



Voice Coil Diameter

44.4/1.74

mm/inch

Dc resistance

5.4

ohm

Voice Coil Material

Copper Clad Aluminium



Number of layer

1



Kind of layer

outside



Magnet

ceramic



MOUNTING INFORMATION





overall diameter

φ120/ φ4.72

mm/inch

Bolt Circle Diameter

φ76 /  3

mm/inch

Bolt Hole Diameter

2-M6 /  2-M0.24

mm/inch

Depth

64/2.52

mm/inch

SHIPPING INFORMATION





Net Weight     (1 units)

2.4

kg

Shipping Weight(8 units)

21

kg

Package Size   (8 units)

295×295×168mm

mm
