HF Drivers Ferrite

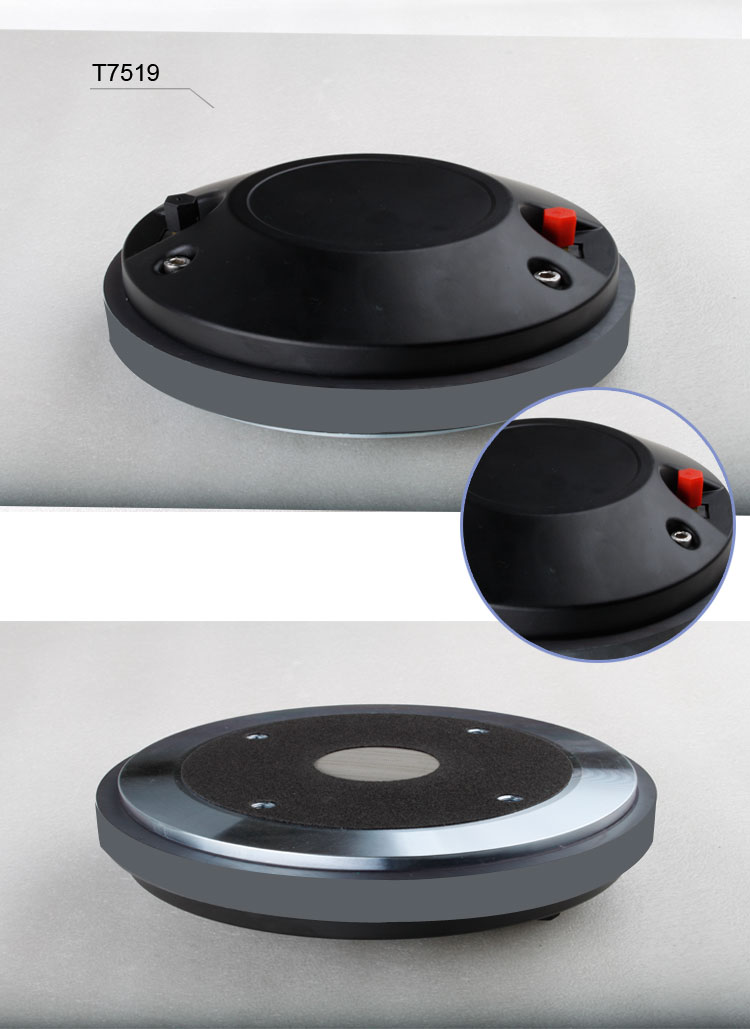

T7519

Key Features

+86-020-84847046

Description




MODEL

T7519



TYPE

DRIVER



THIELE-SMALL PARAMETERS





Exit Throat Diameter

36/1.4

mm/inch

Rated impedance

8

ohm

Power handing capacity

80

watts

Sensitivity (1W/1m)

107

dB

Frequency Range

800-18000

Hz

Diaphragm material

Aluminium magnesium alloy



Suspension material

PI



Voice Coil Diameter

75/3

mm/inch

Dc resistance

5.8

ohm

Voice Coil Material

Copper Clad Aluminium flat



Number of layer

1



Kind of layer

Outside



Magnet

Ceramic



MOUNTING INFORMATION





Overall diameter

φ170/φ6.7

mm/inch

Bolt Circle Diameter

φ102 /φ4.0

mm/inch

Bolt Hole Diameter

4-M6 / 4-M0.24

mm/inch

Depth

65 /2.56

mm/inch

SHIPPING INFORMATION





Net Weight     (4 units)

18

kg

Shipping Weight(4 units)

20

kg

Package Size   (4 units)

375X190X170

mm
