HF Drivers Neodymium

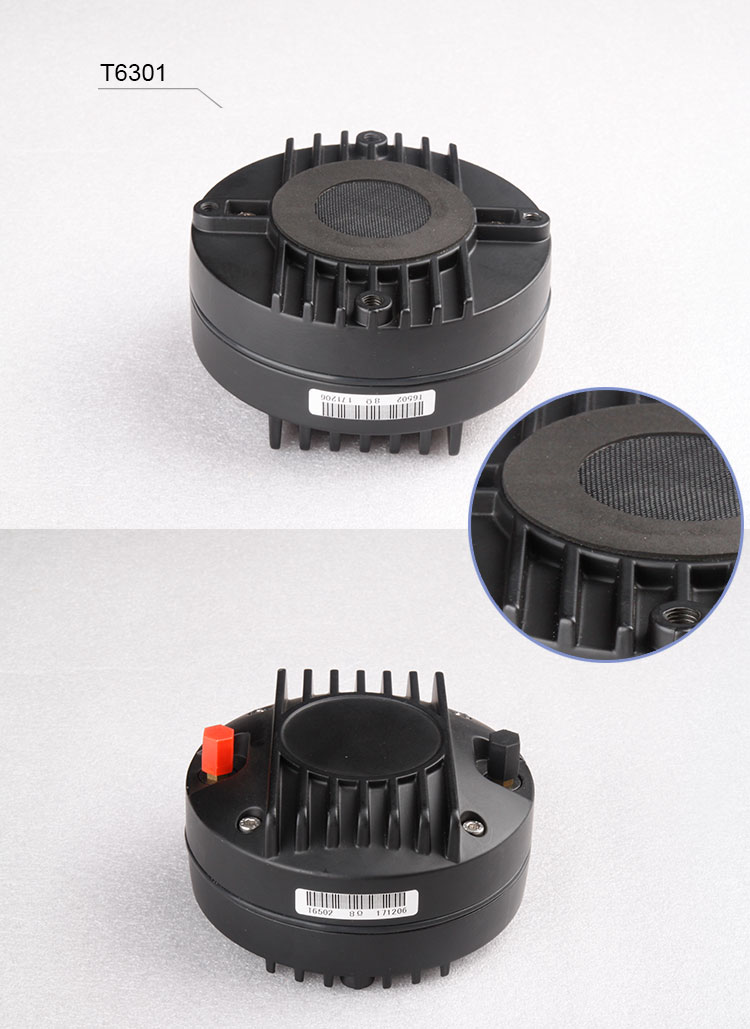

T6301

Key Features

+86-020-84847046

Description




MODEL TYPE
T6301 DRIVER
GENERAL SPECIFICATIONS
Exit Throat Diameter 36/1.4 mm/inch
Rated impedance 8 ohm
Power handing capacity 70 watts
Sensitivity 106 dB/1w/1m
Frequency Range 1500-20000 Hz
Diaphragm material Titanium
Suspension material Mylar
Voice Coil Diameter 63/2.5 mm/inch
Dc resistance 6.2 ohm
Voice Coil Material Copper Clad Aluminum
Number of layer 1
Kind of layer Outside
Magnet Neodymium
MOUNTING INFORMATION
Overall Diameter φ116/ φ4.64 mm/inch
Bolt Circle Diameter φ101.6/φ4.064 mm/inch
Bolt Hole Diameter 4-M6/4-0.24 mm/inch
Depth 60/2.01 mm/inch
SHIPPING INFORMATION
Net Weight                (1 units) 1.8 kg
Shipping Weight        (1 units) 3 kg
Package Size              (1 units) 131*127*72 mm
