Products

HF Drivers Neodymium

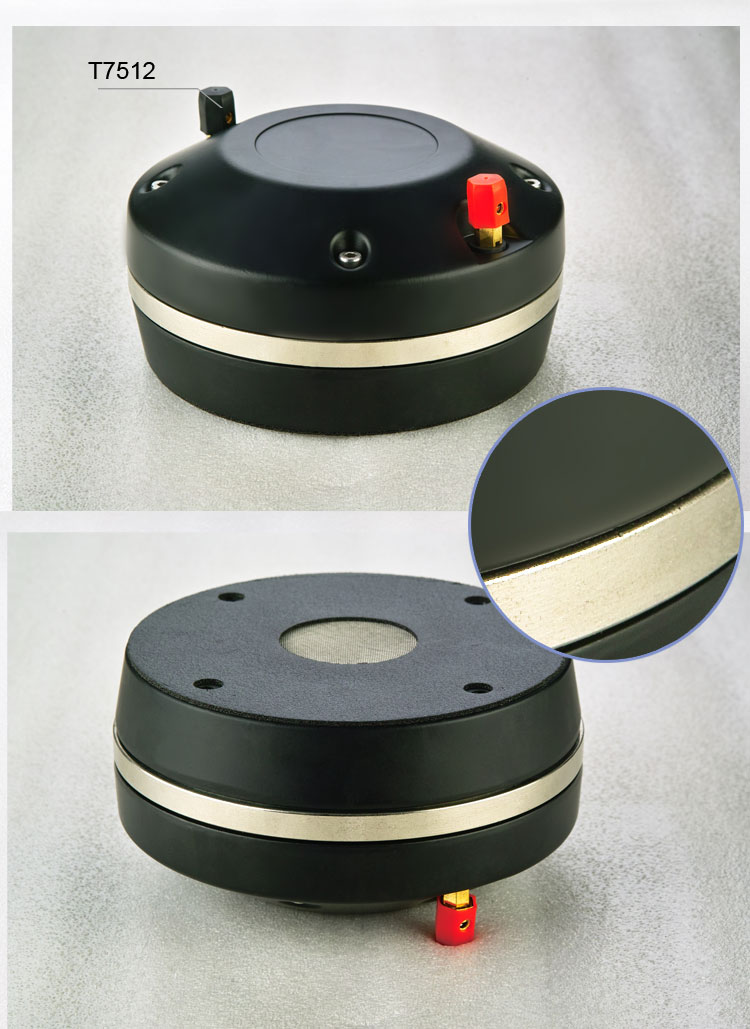

T7512

Key Features

+86-020-84847046

Description




MODEL

T7512



TYPE

DRIVER



GENERAL SPECIFICATIONS

Exit Throat Diameter

36/1.4

mm/inch

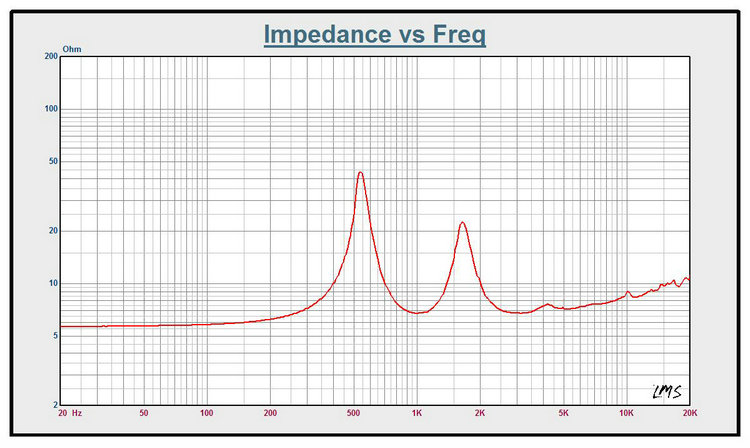

Rated impedance

8

ohm

Power handing capacity

80

watts

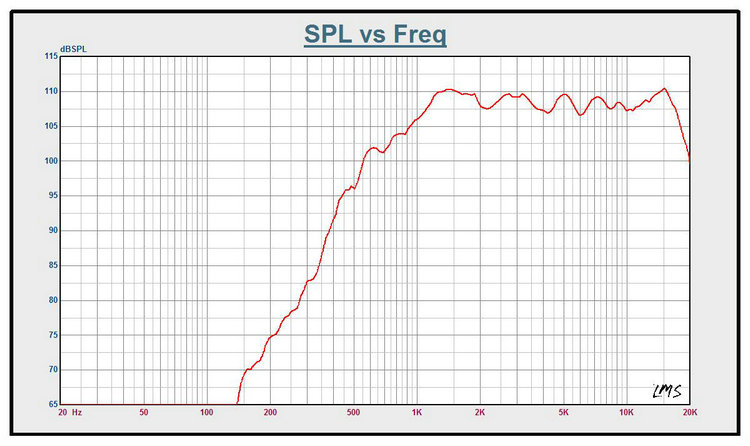

Sensitivity1w/1m)

108

dB

Frequency Range

800-18000

Hz

Diaphragm material

Titanium



suspension material

PEK



Voice Coil Diameter

75/3

mm/inch

Dc resistance

5.6

ohm

Voice Coil Material

Copper Clad Aluminium flat



Number of layer

1



Kind of layer

Outside



Magnet

Neodymium



MOUNTING INFORMATION

overall diameter

φ131/φ5.2

mm/inch

Bolt Circle Diameter

φ102 /φ4.0

mm/inch

Bolt Hole Diameter

4-M6/4-M0.24

mm/inch

Depth

66 /2.6

mm/inch

SHIPPING INFORMATION

Net Weight     (8 units)

20.8

kg

Shipping Weight(8 units)

22.8

kg

Package Size   (8 units)

291X291X182

mm
