HF Drivers Neodymium

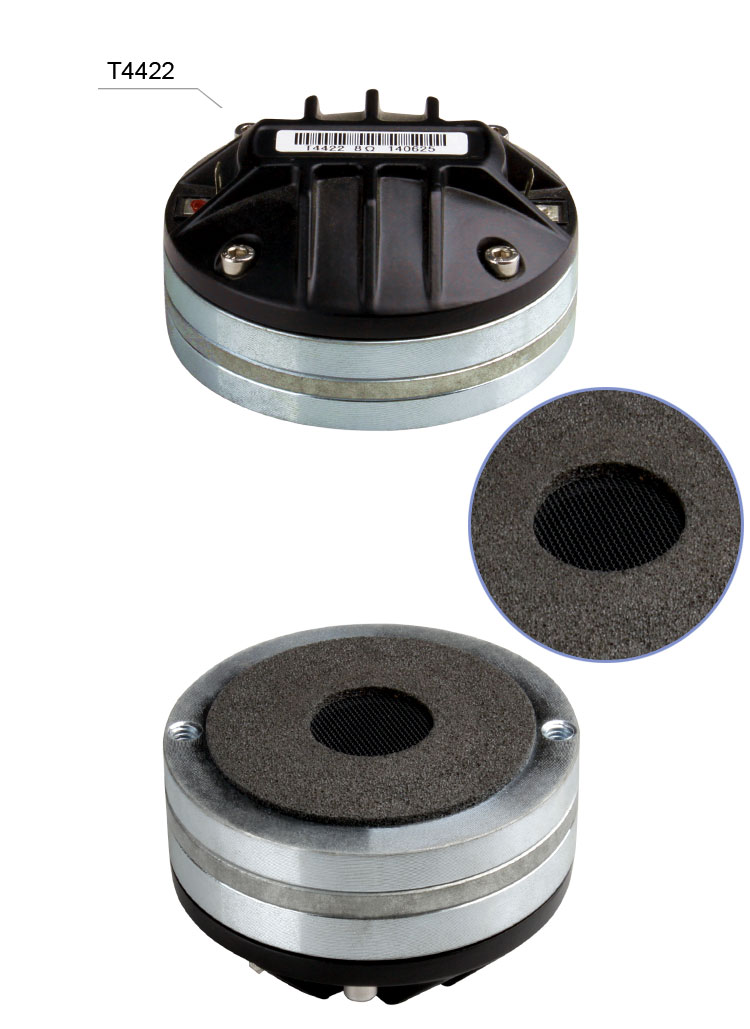

T4422

Key Features

+86-020-84847046

Description




MODEL

T4422



TYPE

DRIVER



GENERAL SPECIFICATIONS





Exit Throat Diameter

25.4/1

mm/inch

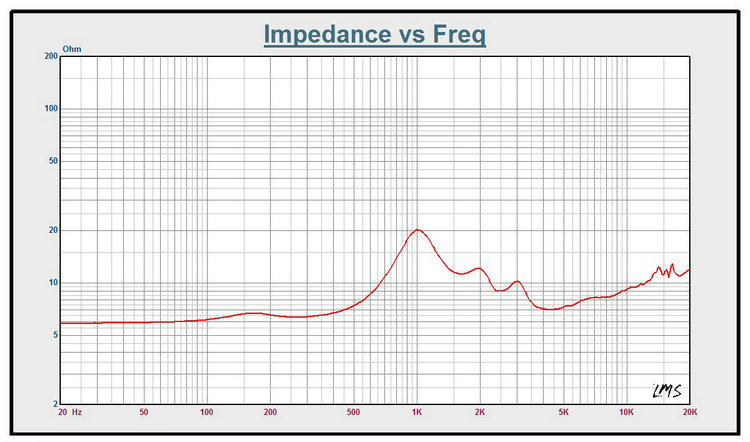

Rated impedance

8

ohm

Power handing capacity

40

watts

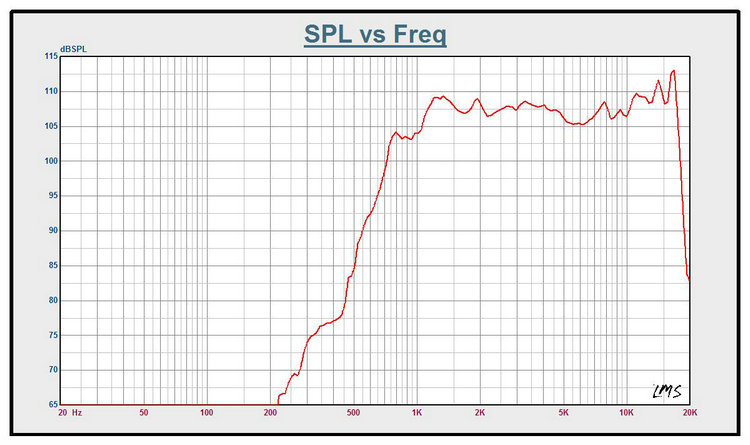

Sensitivity(1w/1m)

107

dB

Frequency Range

1200-20K

Hz

Diaphragm material

PI



suspension material

PI



Voice Coil Diameter

44.4/1.74

mm/inch

Dc resistance

5.4

ohm

Voice Coil Material

Copper Clad Aluminium



Number of layer

1



Kind of layer

outside



Magnet

ceramic



MOUNTING INFORMATION





overall diameter

φ85/ φ3.45

mm/inch

Bolt Circle Diameter

φ76 /  3

mm/inch

Bolt Hole Diameter

2-M6 /  2-M0.24

mm/inch

Depth

46/1.81

mm/inch

SHIPPING INFORMATION





Net Weight     (1 units)

0.9

kg

Shipping Weight(18units)

17.5

kg

Package Size   (18 units)

288×288×140mm

mm
