HF Drivers Ferrite

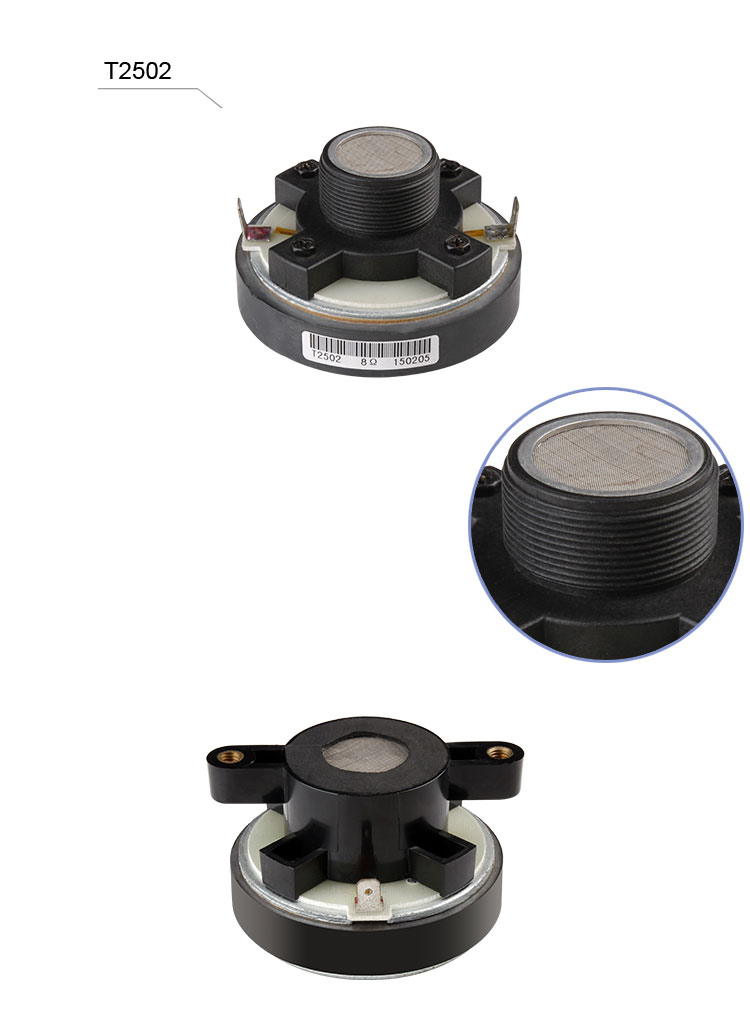

T2502

Key Features

+86-020-84847046

Description




MODEL

T2502



TYPE

DRIVER



THIELE-SMALL PARAMETERS

Exit Throat Diameter

25/1.0

mm/inch

Rated impedance

8

ohm

Power handing capacity

20

watts

Sensitivity1w/1m)

105

dB

Frequency Range

1.5-20K

Hz

Diaphragm material

PEN



Suspension material

PEN



Voice Coil Diameter

25/1.0

mm/inch

Dc resistance

5.6

ohm

Voice Coil Material

Copper Clad Aluminium



Number of layer

1



Kind of layer

Outside



Magnet

Ceramic



MOUNTING INFORMATION

Overall diameter

90/3.5

mm/inch

Bolt Circle Diameter

φ76 /φ3.0

mm/inch

Bolt Hole Diameter

2-M6 / 2-M0.24

mm/inch

Depth

53 /2.0

mm/inch

SHIPPING INFORMATION

Net Weight     (1 units)

0.65

kg

Shipping Weight(26 units)

19.5

kg

Package Size   (26 units)

300X300X190

mm
