HF Drivers Ferrite

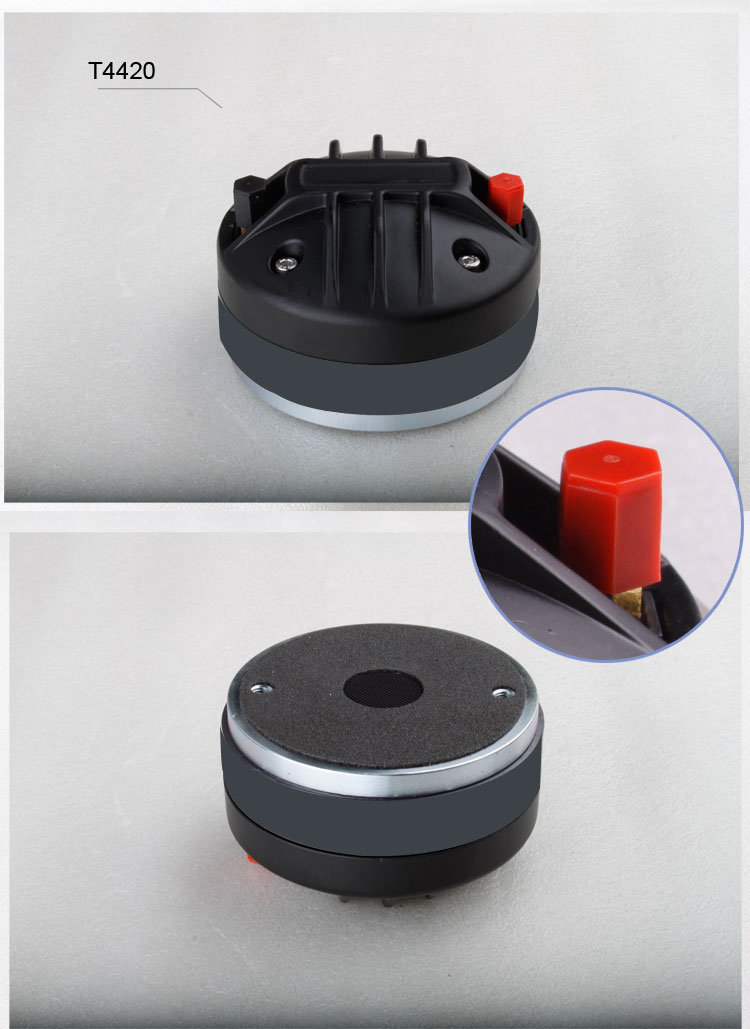

T4420

Key Features

+86-020-84847046

Description




MODEL

T4420



TYPE

DRIVER



THIELE-SMALL PARAMETERS

Exit Throat Diameter

25.4/1

mm/inch

Rated impedance

8

ohm

Power handing capacity

45

watts

Sensitivity(1w/1m)

105

dB

Frequency Range

1200-18K

Hz

Diaphragm material

Titanium



suspension material

Titanium



Voice Coil Diameter

44.4/1.74

mm/inch

Dc resistance

6.0

ohm

Voice Coil Material

Copper Clad Aluminium



Number of layer

1



Kind of layer

outside



Magnet

ceramic



MOUNTING INFORMATION

overall diameter

φ102/ φ4.0

mm/inch

Bolt Circle Diameter

φ76 /  3

mm/inch

Bolt Hole Diameter

2-M6 /  2-M0.24

mm/inch

Depth

62/2.44

mm/inch

SHIPPING INFORMATION

Net Weight     (1 units)

1.8

kg

Shipping Weight(10 units)

19.5

kg

Package Size   (10 units)

298×233×160mm

mm
