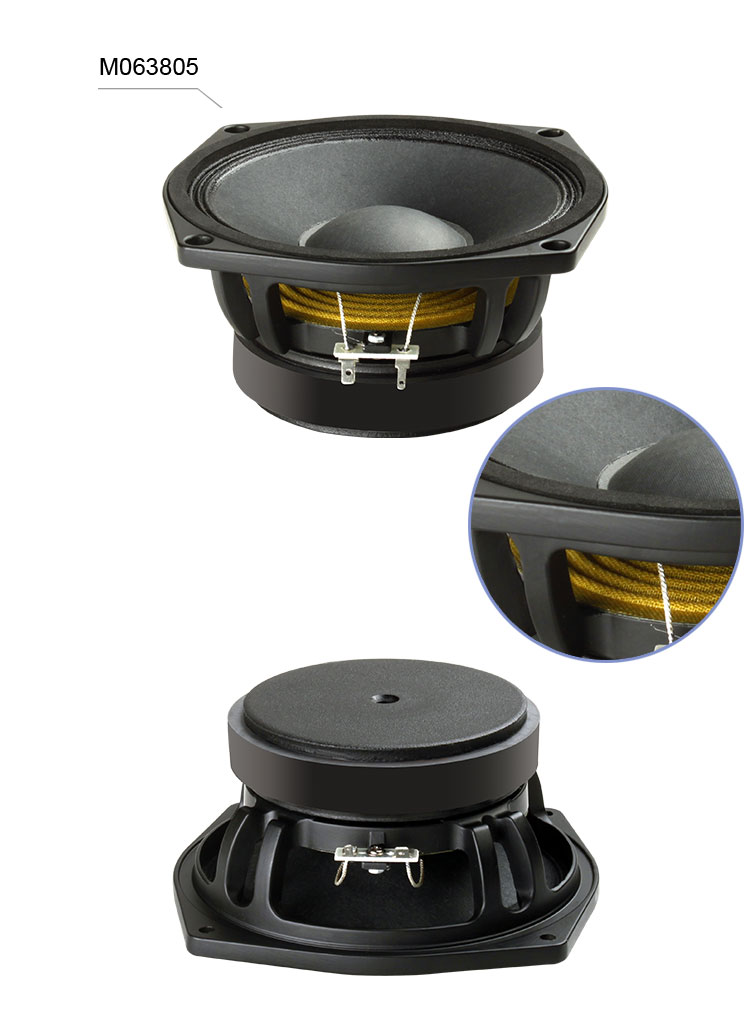

MODEL

M063805

TYPE

MIDRANGE

GENERAL SPECIFICATIONS

Nominal Diameter

165/6.5

mm/inch

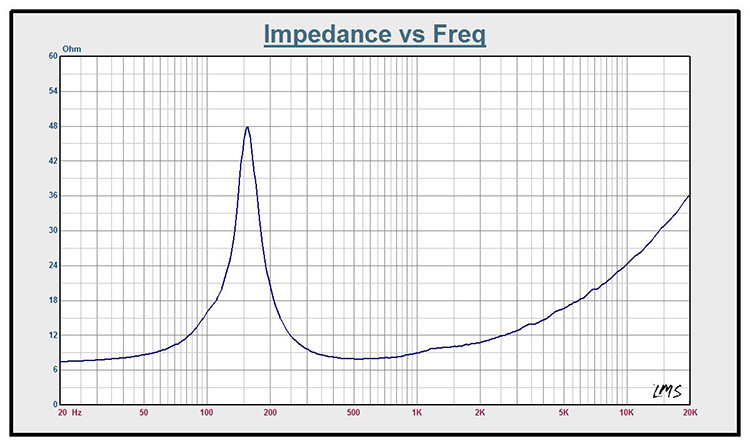

Rated impedance

8

ohm

Power handing capacity

80

watts

Sensitivity  (1W/1m)

94

dB

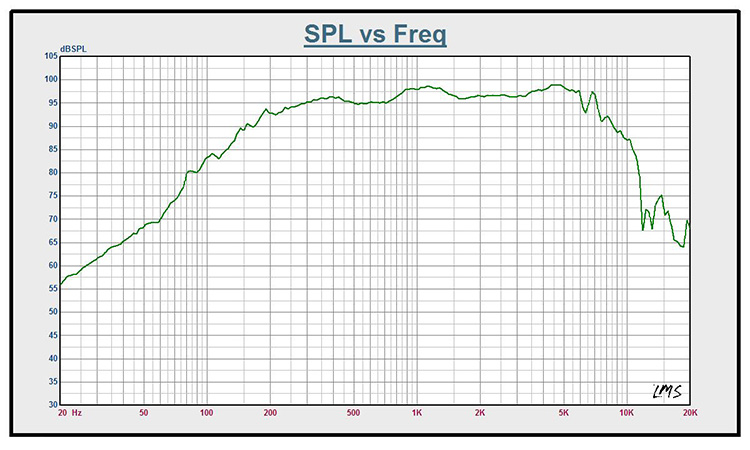

Frequency Range

Fs-6000

Hz

Voice Coil Diameter

38/1.5

mm/inch

Voice Coil Material

copper Clad Aluminium fiat wire

Number of layer

2

Kind of layer

in/outside

THIELE-SMALL PARAMETERS

Resonance frequency

Fs

152

Hz

Dc resistance

Re

6

ohm

Mechanical factor

Qms

3.98

Electrical factor

Qes

0.79

Total factor

Qts

0.66

BL factor

BL

8.8

T.M

Effective Moving mass

Mms

10.8

g

Effective Cas air load

Vas

3.3

liters

Effective piston area

Sd

0.015

m^2

MOUNTING INFORMATION

Overall Diameter

186*161/7.7*6.3

mm/inch

Bolt Circle Diameter

φ172/φ6.8

mm/inch

Bolt Hole Diameter

4-φ5.2/4-φ0.2

mm/inch

Mount Baffle Cut-out

φ145/φ5.7

mm/inch

Depth

82/3.2

mm/inch

SHIPPING INFORMATION

Net Weight         (6 units)

12

kg

Shipping Weight   (6 units)

13.5

kg

Package Size       (6 units)

550X190X220

mm
