LF Speaker Ferrite

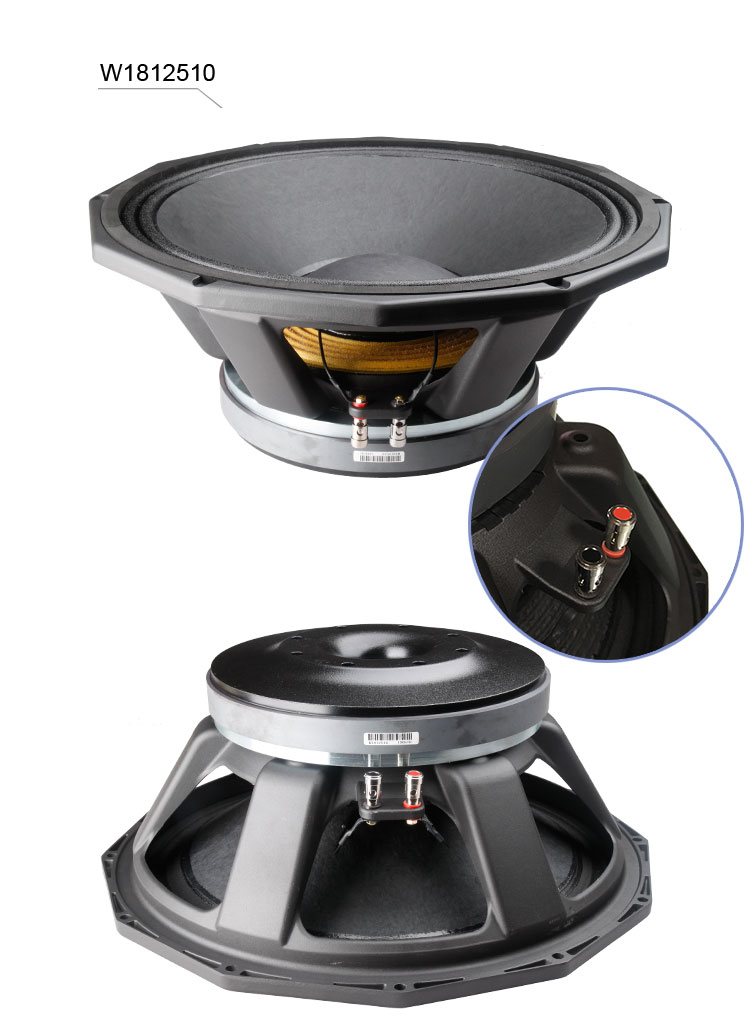

W1812510

Key Features

+86-020-84847046

Description




MODEL TYPE
W1812510 SUB-WOOFER
GENERAL SPECIFICATIONS
Nominal Diameter 465/18 mm/inch
Rated impedance 8 ohm
Power handing capacity 1000 watts
Sensitivity 97 dB/1w/1m
Frequency Range Fs-1800 Hz
Voice Coil Diameter 125/5 mm/inch
Voice Coil Material copper
Number of layer 2
Kind of layer outside/inside
THIELE-SMALL PARAMETERS
Resonance frequency Fs 42 Hz
Dc resistance Re 5.2 ohm
Mechanical factor Qms 9.18
Electrical factor Qes 0.336
Total factor Qts 0.327
BL factor BL 31 T.M
Effective Moving mass Mms 232 g
Effective Cas air load Vas 115 liters
Effective piston area Sd 0.1164 m^2
MOUNTING INFORMATION
Overall Diameter Φ471/Φ18.54 mm/inch
Bolt Circle Diameter Φ452.5/Φ17.81 mm/inch
Bolt Hole Diameter 8-Φ8.7/8-Φ0.34 mm/inch
Mount Baffle Cut-out Φ412/16.22 mm/inch
Depth 199/7.83 mm/inch
SHIPPING INFORMATION
Net Weight 20 kg
Shipping Weight 21.5 kg
Package Size 500X500X240/1PCS mm
