LF Speaker Ferrite

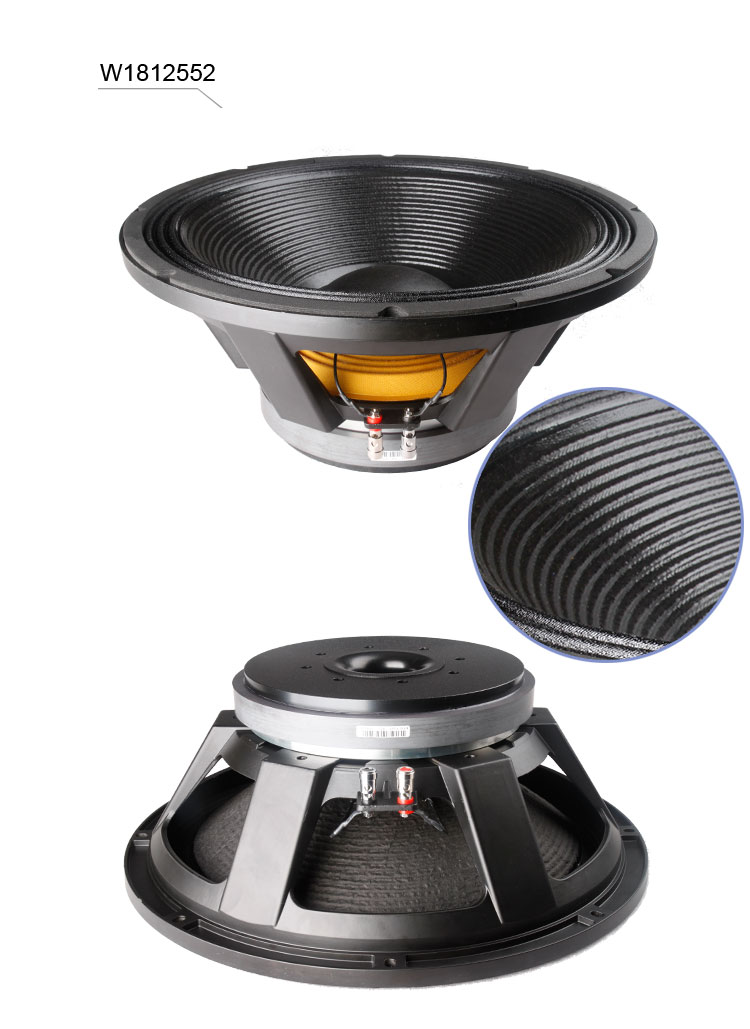

W1812552

Key Features

+86-020-84847046

Description




MODEL W1812552
TYPE SUB-WOOFER
Nominal Diameter 465/18 mm/inch
Rated impedance 8 ohm
Power handing capacity 1000 watts

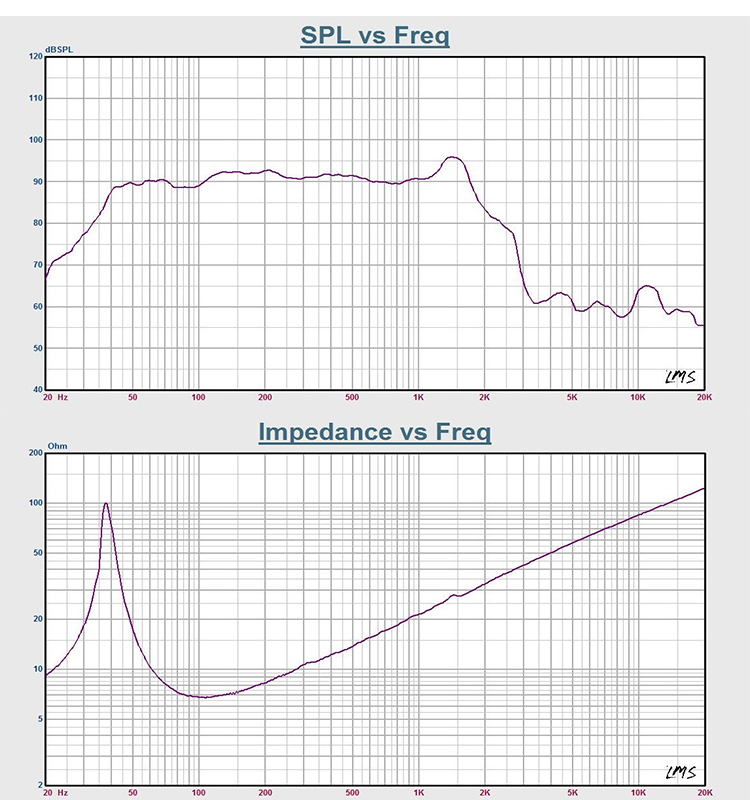

Sensitivity(1w/1m) 94 dB
Frequency Range Fs-1500 Hz
Voice Coil Diameter 125/5 mm/inch
Voice Coil Material Copper
Number of layer 2
Kind of layer inside/outside
Resonance frequency Fs 37 Hz
Dc resistance Re 5.5 ohm
Mechanical factor Qms 9.93
Electrical factor Qes 0.57
Total factor Qts 0.54
BL factor BL 26.4 T.M
Effective Moving mass Mms 303.7 g
Effective Cas air load Vas 125.2 liters
Effective piston area Sd 0.1238 m^2
Overall Diameter Φ464/Φ18.27 mm/inch
Bolt Circle Diameter Φ440/Φ17.32 mm/inch
Bolt Hole Diameter 8-7*8/8-0.28*0.31 mm/inch
Mount Baffle Cut-out Φ417/Φ16.42 mm/inch
Depth 191/7.52 mm/inch
Net Weight       ( 1 unit) 20.2 kg
Shipping Weight    ( 1 unit) 22.7 kg
Package Size      ( 1 unit) 495X485X276 mm
