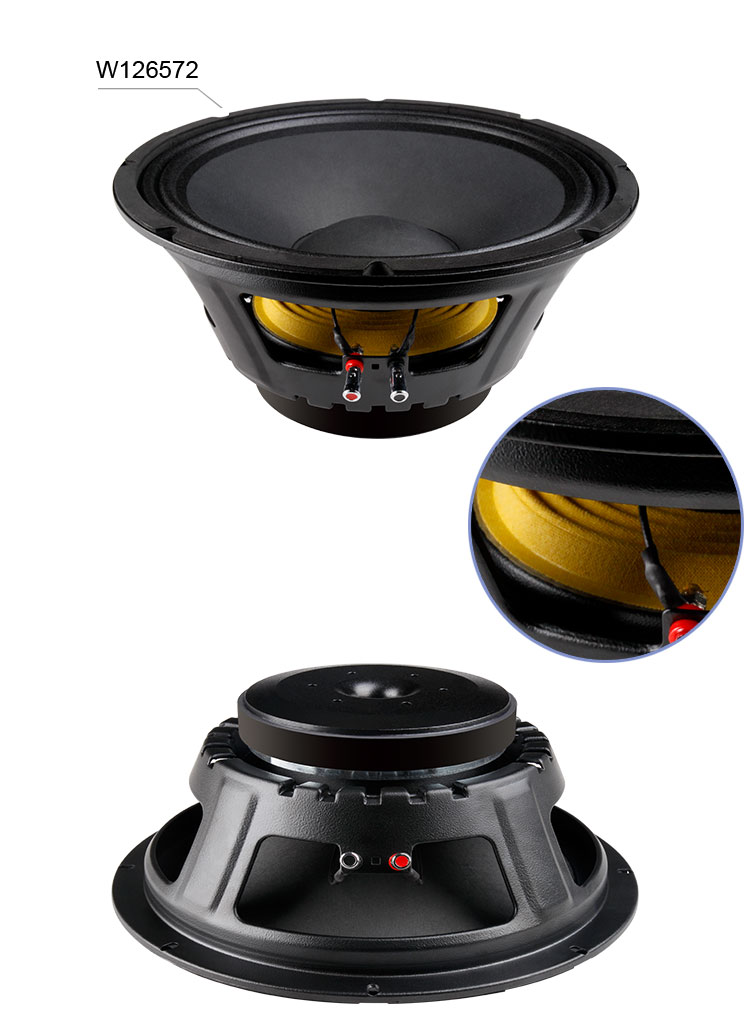

MODEL

W126572

TYPE

MID-BASS

GENERAL SPECIFICATIONS

Nominal Diameter

310/12

mm/inch

Nominal impedance

8

ohm

Nominal power handing(AES)

250

watts

Maximum power handing (AES)

500

watts

Sensitivity(1w/1m)

95

dB

Frequency Range

Fs-3500

Hz

Voice Coil Diameter

65/2.5

mm/inch

Voice Coil Material

Copper

Number of layer

2

Kind of layer

outside

THIELE-SMALL PARAMETERS

Resonance frequency

Fs

43

Hz

Dc resistance

Re

5.6

ohm

Mechanical factor

Qms

2.55

Electrical factor

Qes

0.48

Total factor

Qts

0.4

BL factor

BL

13.6

T.M

Effective Moving mass

Mms

57.5

g

Effective Cas air load

Vas

90

liters

Effective piston area

Sd

0.0531

m^2

MOUNTING INFORMATION

Overall Diameter

φ313/φ12.32

mm/inch

Bolt Circle Diameter

φ300/φ11.81

mm/inch

Bolt Hole Diameter

8-5.5*9/8-0.22*0.35

mm/inch

Mount Baffle Cut-out

φ279/φ10.98

mm/inch

Depth

139/5.47

mm/inch

SHIPPING INFORMATION

Net Weight        ( 2 unit)

9

kg

Shipping Weight     ( 2 unit)

11.2

kg

Package Size       ( 2 unit)

353*353*365

mm
