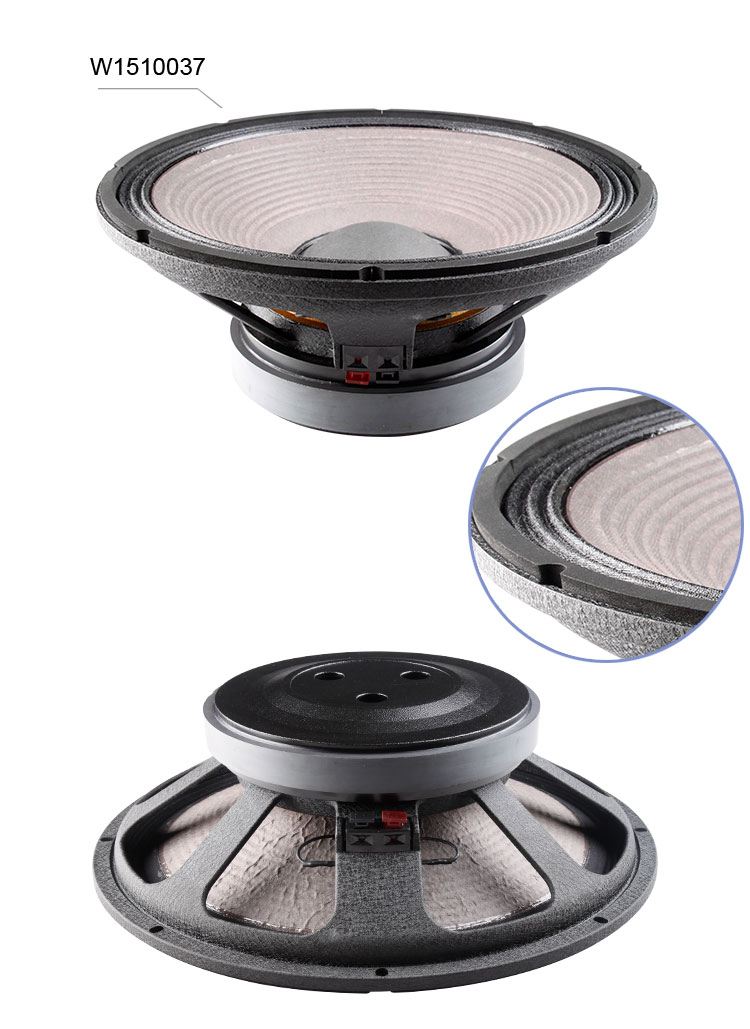

MODEL

W1510037

TYPE

WOOFER

GENERAL SPECIFICATIONS

Nominal Diameter

380/15

mm/inch

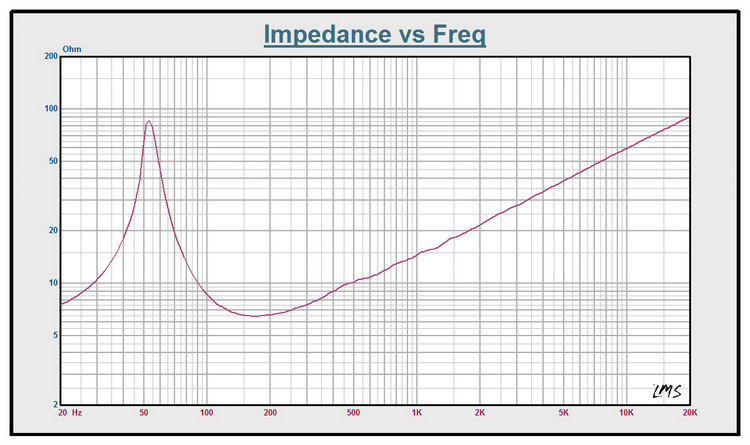

Rated impedance

8

ohm

Power handing capacity

600

watts

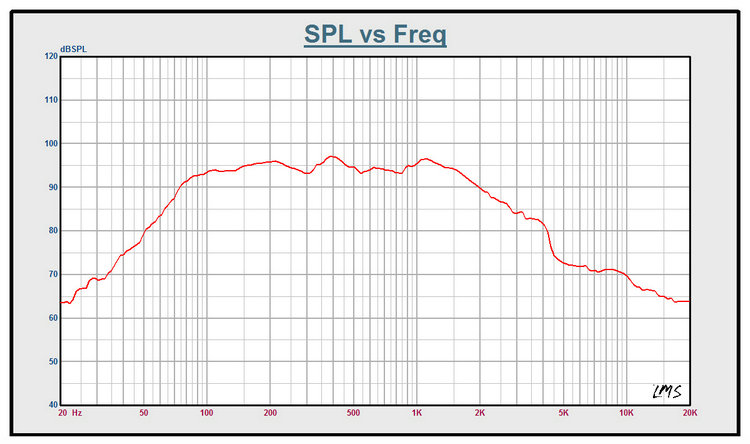

Sensitivity  (1w/1m)

97.5

dB

Frequency Range

Fs-2000

Hz

Voice Coil Diameter

100/4

mm/inch

Voice Coil Material

Copper

Number of layer

2

Kind of layer

outside/inside

THIELE-SMALL PARAMETERS

Resonance frequency

Fs

52

Hz

Dc resistance

Re

5

ohm

Mechanical factor

Qms

7.72

Electrical factor

Qes

0.46

Total factor

Qts

0.43

BL factor

BL

21.1

T.M

Effective Moving mass

Mms

122.2

g

Effective Cas air load

Vas

82.7

liters

Effective piston area

Sd

0.0889

m^2

MOUNTING INFORMATION

Overall Diameter

φ388/φ15.28

mm/inch

Bolt Circle Diameter

φ373/φ14.69

mm/inch

Bolt Hole Diameter

8-6.6*9/8-0.26*0.35

mm/inch

Mount Baffle Cut-out

φ357φ14.06

mm/inch

Depth

140/5.51

mm/inch

SHIPPING INFORMATION

Net Weight  （1 units)

10.7

kg

Shipping Weight（1 units)

12.2

kg

Package Size  （1 units)

415*415*166

mm
