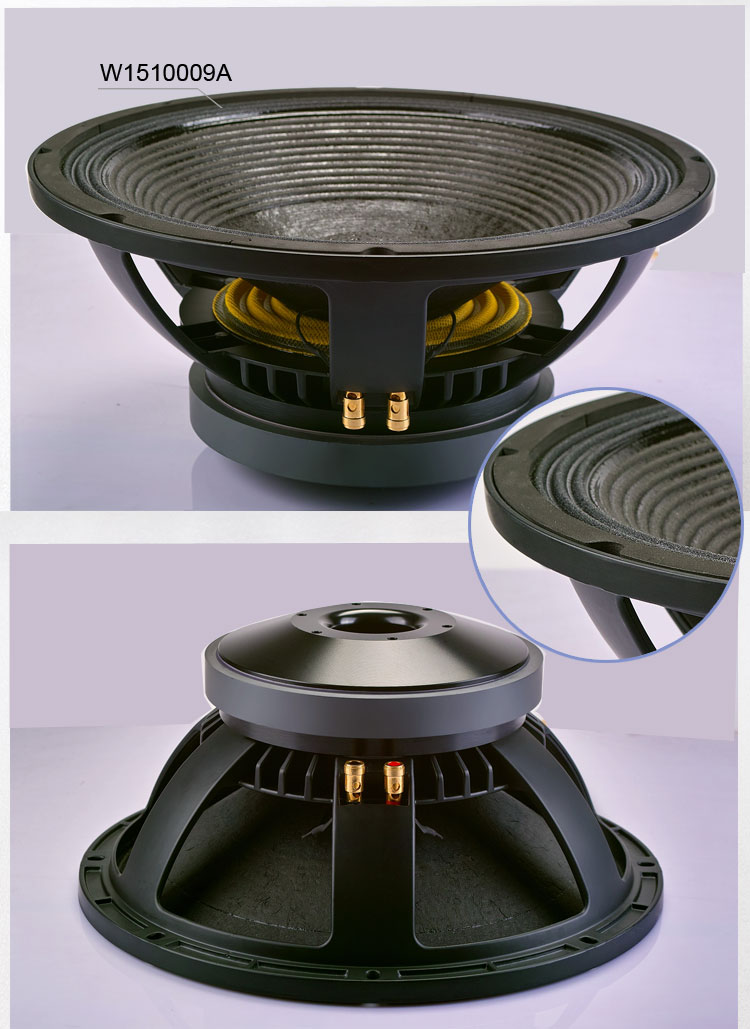

MODEL

W1510009

TYPE

SUBWOOFER

GENERAL SPECIFICATIONS

Nominal Diameter

380/15

mm/inch

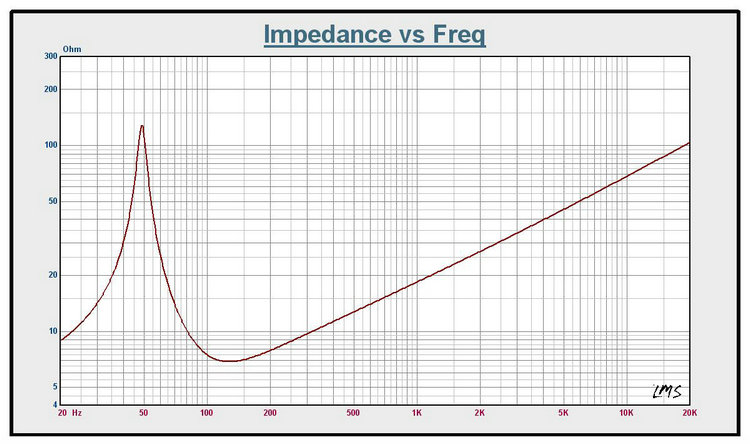

Rated impedance

8

ohm

Power handing capacity

600

watts

Sensitivity(1w/1m)

94

dB/1w/1m

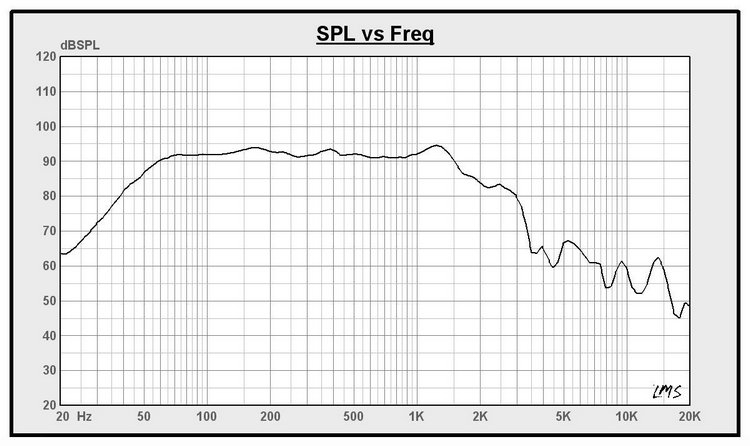

Frequency Range

Fs-1800

Hz

Voice Coil Diameter

100/4

mm/inch

Voice Coil Material

Copper

Number of layer

2

Kind of layer

inside/outside

THIELE-SMALL PARAMETERS

Resonance frequency

Fs

47

Hz

Dc resistance

Re

4.9

ohm

Mechanical factor

Qms

10.9

Electrical factor

Qes

0.52

Total factor

Qts

0.5

BL factor

BL

21.9

T.M

Effective Moving mass

Mms

172

g

Effective Cas air load

Vas

73

liters

Effective piston area

Sd

0.088

m^2

MOUNTING INFORMATION

Overall Diameter

φ394/φ15.5

mm/inch

Bolt Circle Diameter

φ373/φ14.7

mm/inch

Bolt Hole Diameter

8-10x6.5/8-0.39*0.26

mm/inch

Mount Baffle Cut-out

φ356/φ14

mm/inch

Depth

182/7.2

mm/inch

SHIPPING INFORMATION

Net Weight        ( 1 unit)

12.5

kg

Shipping Weight ( 1 unit)

14

kg

Package Size      ( 1 unit)

425X410X230

mm
