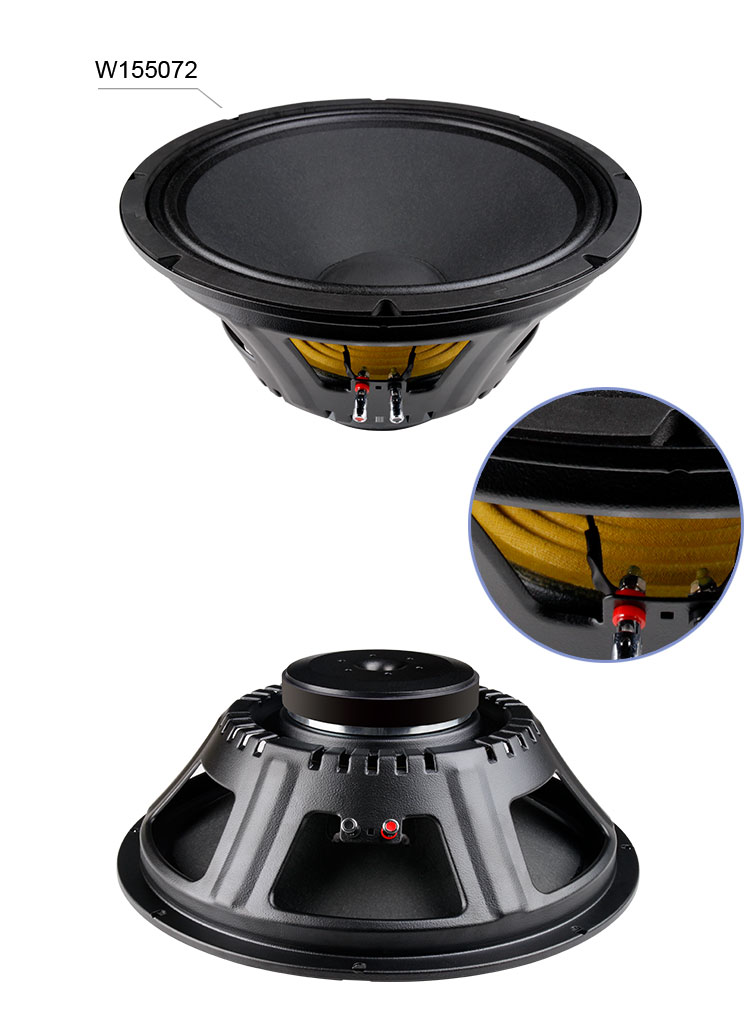

MODEL

W155072

TYPE

MID-BASS

GENERAL SPECIFICATIONS

Nominal Diameter

380/15

mm/inch

Nominal impedance

8

ohm

Nominal power handing

200

watts

Sensitivity(1w/1m)

94

dB

Frequency Range

Fs-3000

Hz

Voice Coil Diameter

50/2.0

mm/inch

Voice Coil Material

Copper

Number of layer

2

Kind of layer

outside

THIELE-SMALL PARAMETERS

Resonance frequency

Fs

34

Hz

Dc resistance

Re

5.6

ohm

Mechanical factor

Qms

3.23

Electrical factor

Qes

0.69

Total factor

Qts

0.57

BL factor

BL

12.3

T.M

Effective Moving mass

Mms

92.3

g

Effective Cas air load

Vas

243

liters

Effective piston area

Sd

0.0855

m^2

MOUNTING INFORMATION

Overall Diameter

φ391/φ15.39

mm/inch

Bolt Circle Diameter

φ377/φ14.84

mm/inch

Bolt Hole Diameter

8-7*9.5/8-0.28*0.37

mm/inch

Mount Baffle Cut-out

φ359/φ14.13

mm/inch

Depth

153/6.02

mm/inch

SHIPPING INFORMATION

Net Weight        (1 unit)

4.1

kg

Shipping Weight     (1 unit)

6.3

kg

Package Size       (1 unit)

410*410*181

mm
