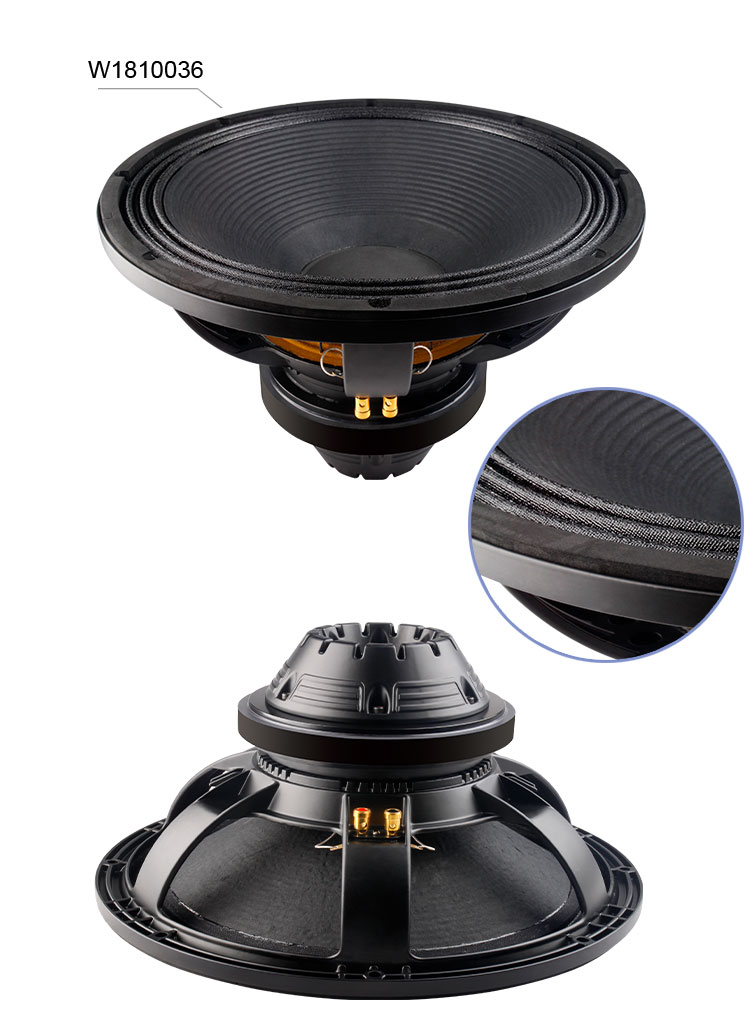

MODEL

W1810036

TYPE

SUB-WOOFER

GENERAL SPECIFICATIONS

Nominal Diameter

460/18

mm/inch

Nominal impedance

8

ohm

Nominal power handing(AES)

1000

watts

Sensitivity(1w/1m)

96

dB

Frequency Range

Fs-1500

Hz

Voice Coil Diameter

100/4

mm/inch

Voice Coil Material

Copper

Number of layer

2

Kind of layer

inside/outside

THIELE-SMALL PARAMETERS

Resonance frequency

Fs

39

Hz

Dc resistance

Re

4.6

ohm

Mechanical factor

Qms

8.87

Electrical factor

Qes

0.5

Total factor

Qts

0.48

BL factor

BL

23

T.M

Effective Moving mass

Mms

230

g

Effective Cas air load

Vas

139

liters

Effective piston area

Sd

0.1195

m^2

MOUNTING INFORMATION

Overall Diameter

φ463/φ18.23

mm/inch

Bolt Circle Diameter

φ442/φ17.40

mm/inch

Bolt Hole Diameter

8-φ9/8-φ0.35

mm/inch

Mount Baffle Cut-out

φ419/φ16.5

mm/inch

Depth

276/10.87

mm/inch

SHIPPING INFORMATION

Net Weight        ( 1 unit)

13

kg

Shipping Weight      ( 1unit)

15.7

kg

Package Size      ( 1unit)

490*490*302

mm
