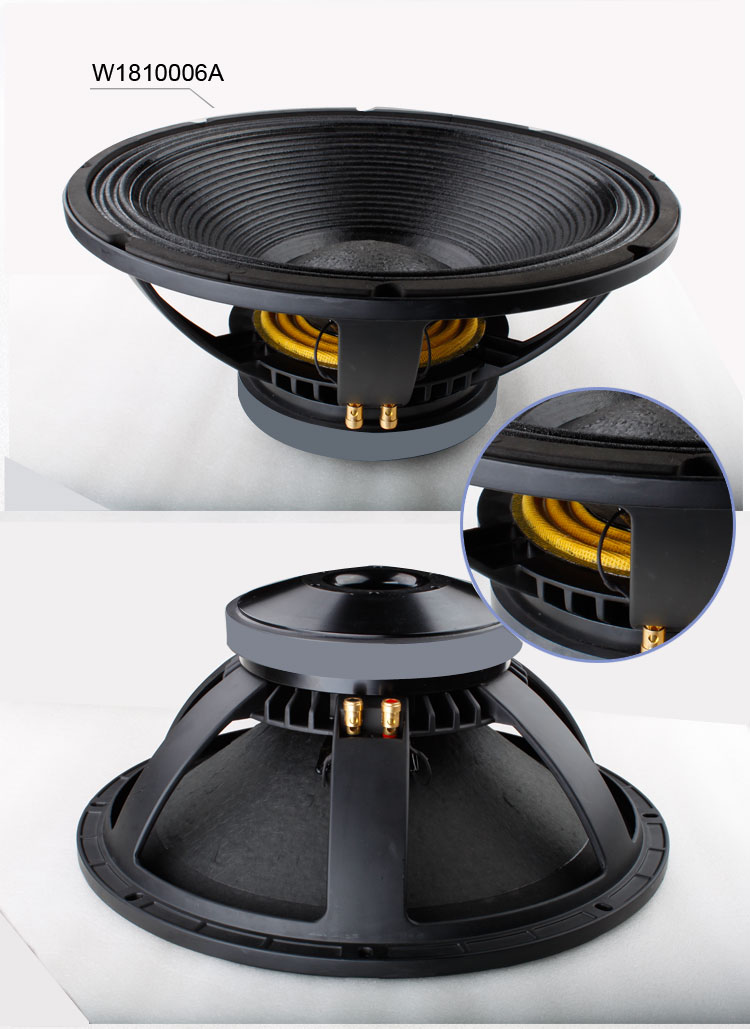

MODEL

W1810006

TYPE

WOOFER

GENERAL SPECIFICATIONS

Nominal Diameter

460/18

mm/inch

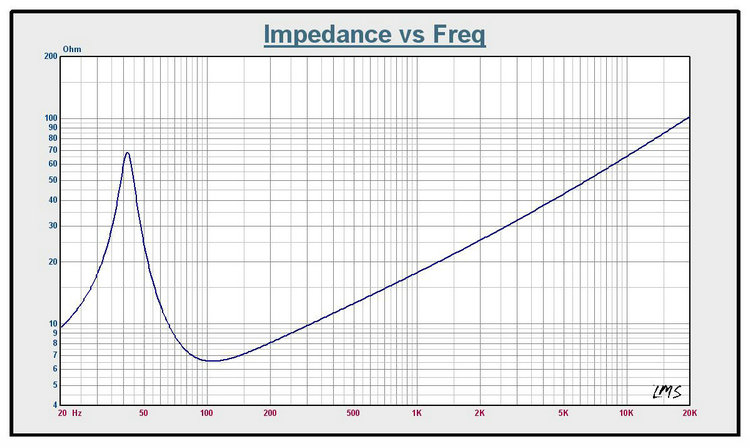

Rated impedance

8

ohm

Power handing capacity

600

watts

Sensitivity(1w/1m)

96

dB

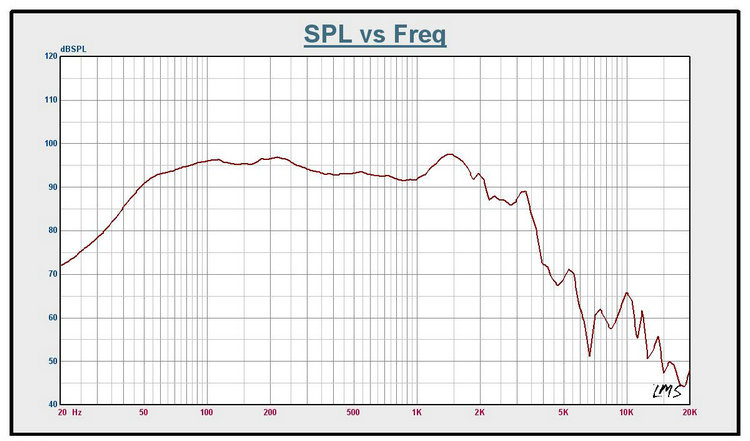

Frequency Range

Fs-2500

Hz

Voice Coil Diameter

100/4

mm/inch

Voice Coil Material

Copper

Number of layer

2

Kind of layer

inside/outside

THIELE-SMALL PARAMETERS

Resonance frequency

Fs

43

Hz

Dc resistance

Re

4.9

ohm

Mechanical factor

Qms

9.55

Electrical factor

Qes

0.52

Total factor

Qts

0.49

BL factor

BL

24.3

T.M

Effective Moving mass

Mms

230

g

Effective Cas air load

Vas

130

liters

Effective piston area

Sd

0.124

m^2

MOUNTING INFORMATION

Overall Diameter

Φ460/Φ18.1

mm/inch

Bolt Circle Diameter

Φ440/Φ17.3

mm/inch

Bolt Hole Diameter

8-7*10/8-0.28*0.3

mm/inch

Mount Baffle Cut-out

Φ421/Φ16.6

mm/inch

Depth

203/8.1

mm/inch

SHIPPING INFORMATION

Net Weight        ( 1 unit)

13.5

kg

Shipping Weight ( 1 unit)

15

kg

Package Size      ( 1 unit)

495X495X230

mm
