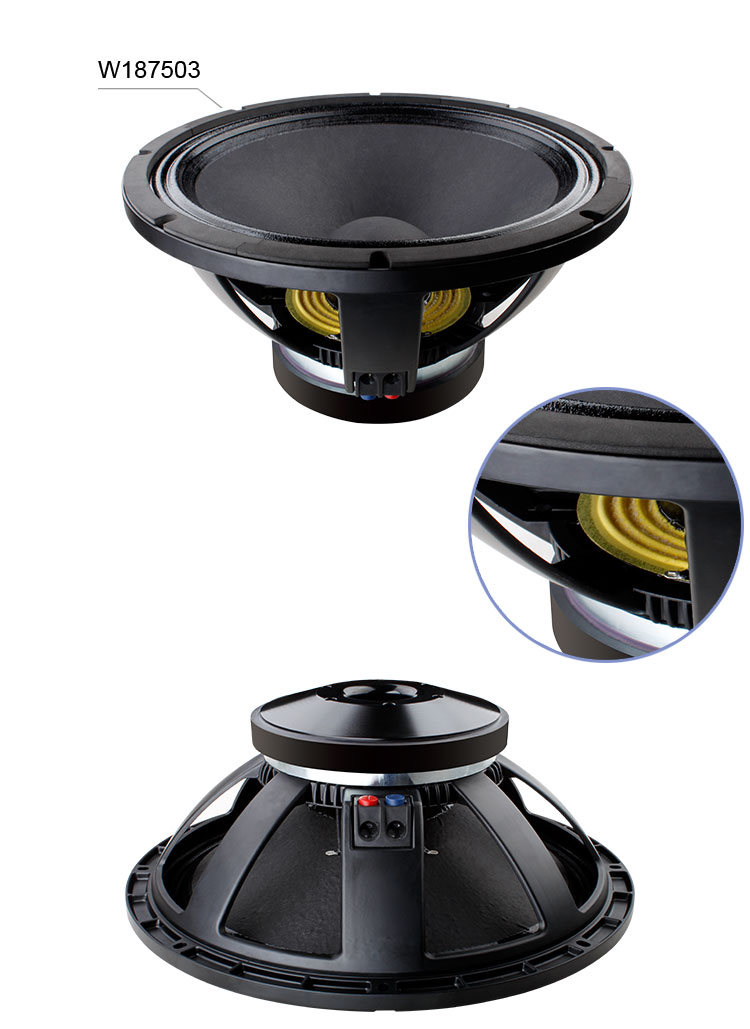

MODEL

W187503

TYPE

MID-BASS

GENERAL SPECIFICATIONS

Nominal Diameter

460/18

mm/inch

Nominal impedance

8

ohm

Nominal power handing(AES)

500

watts

Sensitivity(1w/1m)

97.5

dB

Frequency Range

Fs-2500

Hz

Voice Coil Diameter

75/3.0

mm/inch

Voice Coil Material

Copper

Number of layer

2

Kind of layer

inside/outside

THIELE-SMALL PARAMETERS

Resonance frequency

Fs

35

Hz

Dc resistance

Re

5.5

ohm

Mechanical factor

Qms

4.94

Electrical factor

Qes

0.37

Total factor

Qts

0.35

BL factor

BL

21.9

T.M

Effective Moving mass

Mms

147.4

g

Effective Cas air load

Vas

270

liters

Effective piston area

Sd

0.117

m^2

MOUNTING INFORMATION

Overall Diameter

φ461/φ18.15

mm/inch

Bolt Circle Diameter

φ439/φ17.28

mm/inch

Bolt Hole Diameter

8-8*11/8-0.31*0.43

mm/inch

Mount Baffle Cut-out

φ416/φ16.38

mm/inch

Depth

201/7.91

mm/inch

SHIPPING INFORMATION

Net Weight        ( 1 unit)

12.2

kg

Shipping Weight     ( 1unit)

13.8

kg

Package Size      ( 1unit)

495*485*240

mm
