MODEL

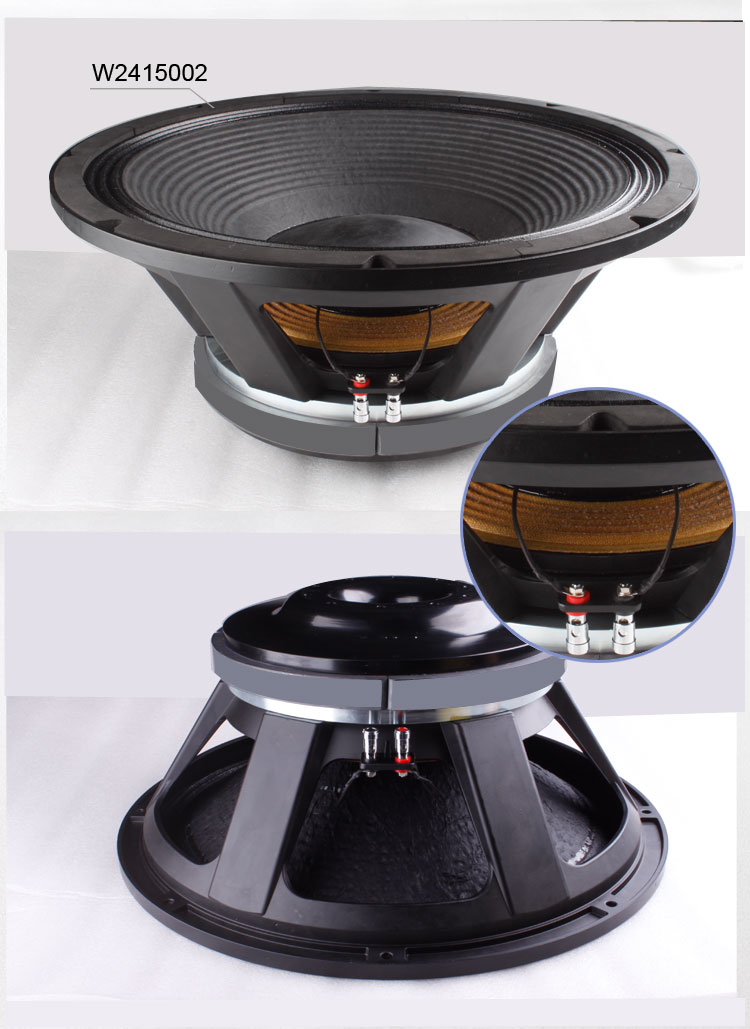

W2415002

TYPE

SUB-WOOFER

GENERAL SPECIFICATIONS

Nominal Diameter

620/24

mm/inch

Rated impedance

8

ohm

Power handing capacity

1500

watts

Sensitivity(1w/1m)

98

Db

Frequency Range

Fs-1000

Hz

Voice Coil Diameter

152/6

mm/inch

Voice Coil Material

Copper

Number of layer

2

Kind of layer

inside/outside

THIELE-SMALL PARAMETERS

Resonance frequency

Fs

29

Hz

Dc resistance

Re

5.7

ohm

Mechanical factor

Qms

3.81

Electrical factor

Qes

0.58

Total factor

Qts

0.5

BL factor

BL

27.8

T.M

Effective Moving mass

Mms

436

g

Effective Cas air load

Vas

989

liters

Effective piston area

Sd

0.317

m^2

MOUNTING INFORMATION

Overall Diameter

φ620/φ24.4

mm/inch

Bolt Circle Diameter

φ590/φ23.2

mm/inch

Bolt Hole Diameter

8-φ6.5/8-φ0.26

mm/inch

Mount Baffle Cut-out

φ582/φ22.9

mm/inch

Depth

285/11.2

mm/inch

SHIPPING INFORMATION

Net Weight

36

kg

Shipping Weight

40

kg

Package Size

700X700X370/1pcs

mm
