Key Features
| MODEL | TYPE | ||

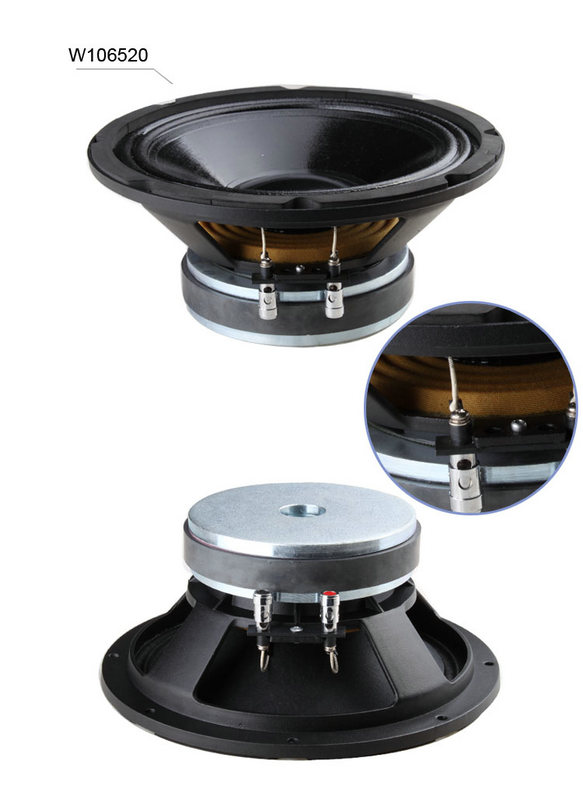

| W106520 | MID-BASS | ||
| GENERAL SPECIFICATIONS | |||
| Nominal Diameter | 250/10 | mm/inch | |
| Rated impedance | 8 | ohm | |
| Power handing capacity | 250 | watts | |
| Sensitivity | 94 | dB/1w/1m | |
| Frequency Range | Fs-3000 | Hz | |
| Voice Coil Diameter | 65/2.5 | mm/inch | |
| Voice Coil Material | Copper clad Aluminium edge wound | ||
| Number of layer | 1 | ||
| Kind of layer | Outside | ||
| THIELE-SMALL PARAMETERS | |||
| Resonance frequency | Fs | 52 | Hz |
| Dc resistance | Re | 5.6 | ohm |
| Mechanical factor | Qms | 5 | |
| Electrical factor | Qes | 0.47 | |
| Total factor | Qts | 0.43 | |
| BL factor | BL | 12.3 | T.M |
| Effective Moving mass | Mms | 36 | g |
| Effective Cas air load | Vas | 41 | liters |
| Effective piston area | Sd | 0.035 | m^2 |
| MOUNTING INFORMATION | |||
| Overall Diameter | Φ267/Φ10.5 | mm/inch | |
| Bolt Circle Diameter | Φ253/Φ10 | mm/inch | |
| Bolt Hole Diameter | 8-Φ5.5/8-Φ0.22 | mm/inch | |
| Mount Baffle Cut-out | 232/9.16 | mm/inch | |
| Depth | 115/4.5 | mm/inch | |
| SHIPPING INFORMATION | |||
| Net Weight (4units) | 20 | kg | |
| Shipping Weight (4units) | 21 | kg | |
| Package Size (4units) | 500X280X300 | mm | |
