Key Features

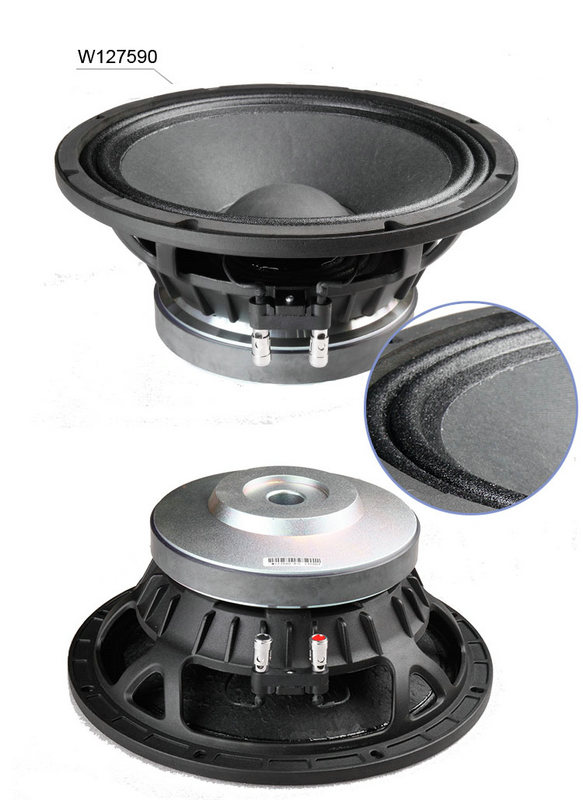

| MODEL | W127590 | ||
| TYPE | MID-BASS | ||
| General specifications | |||
| Nominal Diameter | 300/12 | mm/inch | |
| Rated impedance | 8 | ohm | |
| Power handing capacity | 350 | watts | |
| Sensitivity (1w/1m) | 98 | dB | |

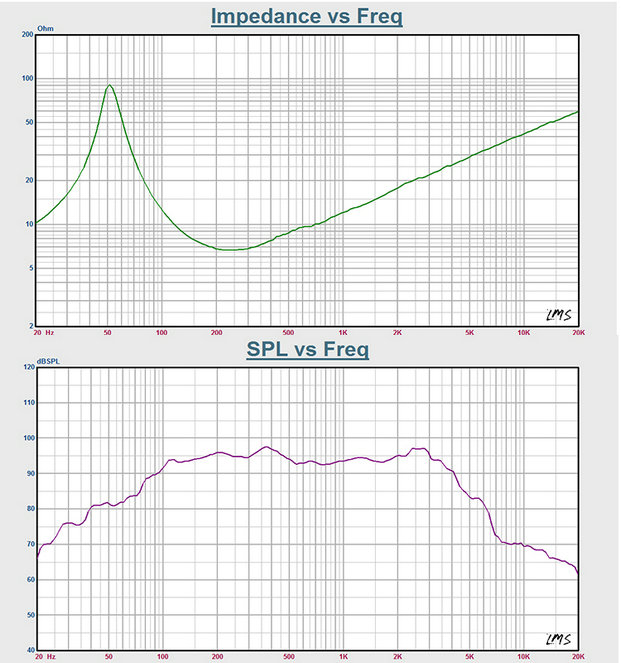

| Frequency Range | Fs-3000 | Hz | |
| Voice Coil Diameter | 75/3 | mm/inch | |
| Voice Coil Material | Copper Clad Aluminium | ||
| Number of layer | 2 | ||
| Kind of layer | inside/outside | ||
| Thiele-Small Parameters | |||
| Resonance frequency | Fs | 51 | Hz |
| Dc resistance | Re | 5.1 | ohm |
| Mechanical factor | Qms | 5.01 | |
| Electrical factor | Qes | 0.3 | |
| Total factor | Qts | 0.28 | |
| BL factor | BL | 17.6 | T.M |
| Effective Moving mass | Mms | 55.7 | g |
| Effective Cas air load | Vas | 70.4 | liters |
| Effective piston area | Sd | 0.0539 | m^2 |
| Mounting Information | |||
| Overall Diameter | φ316/φ12.44 | mm/inch | |
| Bolt Circle Diameter | φ297/φ11.69 | mm/inch | |
| Bolt Hole Diameter | 8-7*9/8-0.28*0.35 | mm/inch | |
| Mount Baffle Cut-out | φ278/ φ10.94 | mm/inch | |
| Depth | 139/5.47 | mm/inch | |
| Shipping Information | |||
| Net Weight （2 units) | 16 | kg | |
| Shipping Weight（2 units) | 18.1 | kg | |
| Package Size （2 units) | 608*333*177 | mm |
