Products

LF Speaker Ferrite

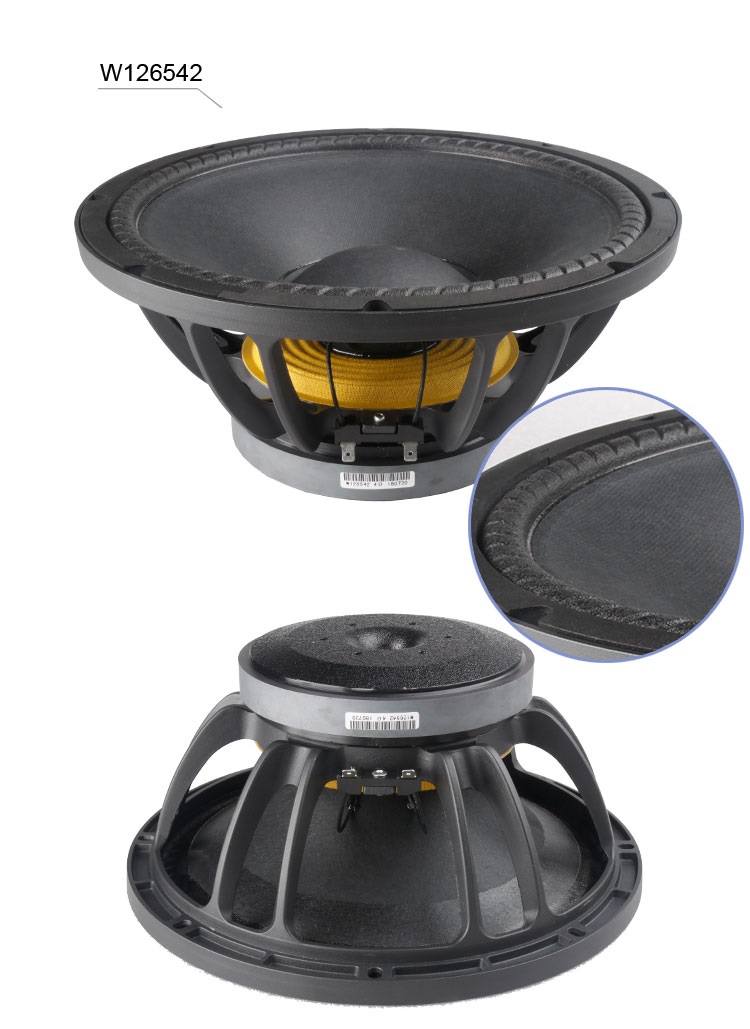

W126542

Key Features

+86-020-84847046

Description



MODELTYPE
W126542MID-BASS
GENERAL SPECIFICATIONS
Nominal Diameter300/12mm/inch
Rated impedance4ohm
Power handing capacity250watts
Sensitivity98.5dB/1w/1m
Frequency RangeFs-3000Hz
Voice Coil Diameter65/2.5mm/inch
Voice Coil MaterialCopper
Number of layer2
Kind of layerInside/Outside
THIELE-SMALL PARAMETERS
Resonance frequencyFs48Hz
Dc resistanceRe3.8ohm
Mechanical factorQms7.75
Electrical factorQes0.31
Total factorQts0.29
BL factorBL15.1T.M
Effective Moving massMms58.7g
Effective Cas air loadVas81.80liters
Effective piston areaSd0.0568m^2
MOUNTING INFORMATION
Overall DiameterΦ315/Φ12.40mm/inch
Bolt Circle DiameterΦ298/Φ11.73mm/inch
Bolt Hole Diameter6.5*9.5/0.26*0.37mm/inch
Mount Baffle Cut-out285/11.22mm/inch
Depth145/5.71mm/inch
SHIPPING INFORMATION
Net Weight         (2 units)10kg
Shipping Weight      (2 units)12kg
Package Size        (2 units)590X330X180mm
