LF Speaker Ferrite

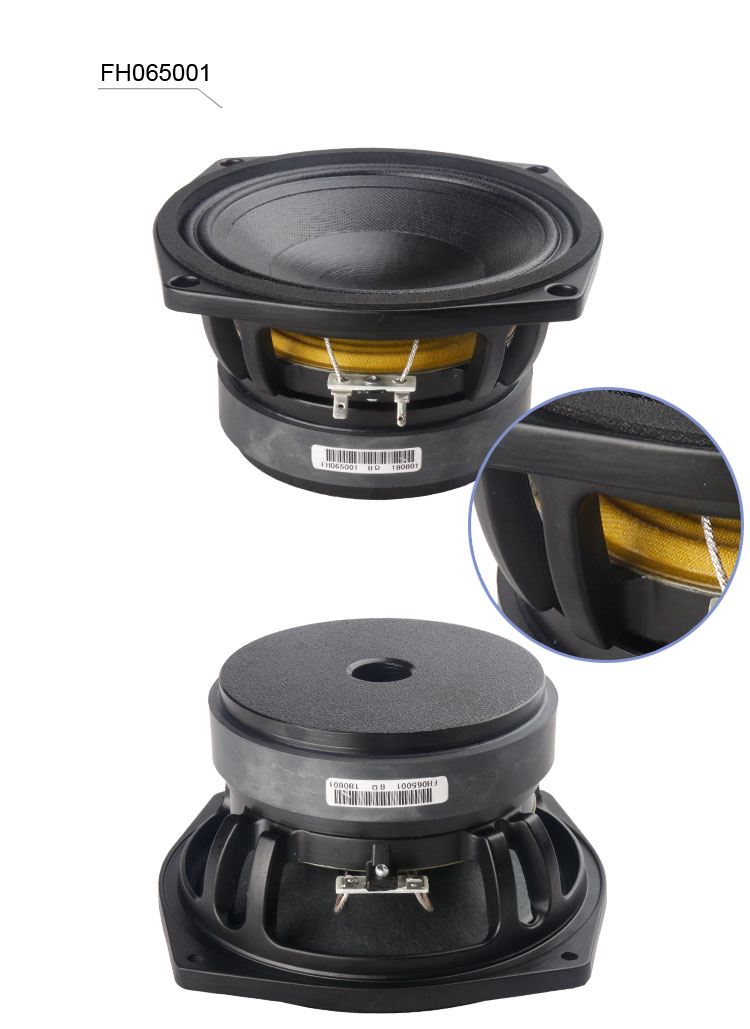

FH065001

Key Features

+86-020-84847046

Description




MODEL FH065001
TYPE MID-BASS
Nominal Diameter 165/6.5 mm/inch
Rated impedance 8 ohm
Power handing capacity 120 watts
Sensitivity(1w/1m) 92 dB
Frequency Range FS-8000 Hz
Voice Coil Diameter 50/2 mm/inch
Voice Coil Material Copper Clad Aluminium
Number of layer 2
Kind of layer outside
Resonance frequency Fs 92 Hz
Dc resistance Re 5.4 ohm
Mechanical factor Qms 8.569
Electrical factor Qes 0.69
Total factor Qts 0.62
BL factor BL 8.6 T.M
Effective Moving mass Mms 15.3 g
Effective Cas air load Vas 4.8 liters
Effective piston area Sd 0.0135 m^2
Overall Diameter Φ186*161/Φ7.7*6.3 mm/inch
Bolt Circle Diameter Φ172/Φ6.8 mm/inch
Bolt Hole Diameter 4-Φ5.2/4-Φ0.2 mm/inch
Mount Baffle Cut-out Φ145 /Φ5.7 mm/inch
Depth 87/3.43 mm/inch
Net Weight    (6 unit) 14.4 kg
Shipping Weight (6 unit) 16 kg
Package Size   (6 unit) 550*190*220 mm
