LF Speaker Ferrite

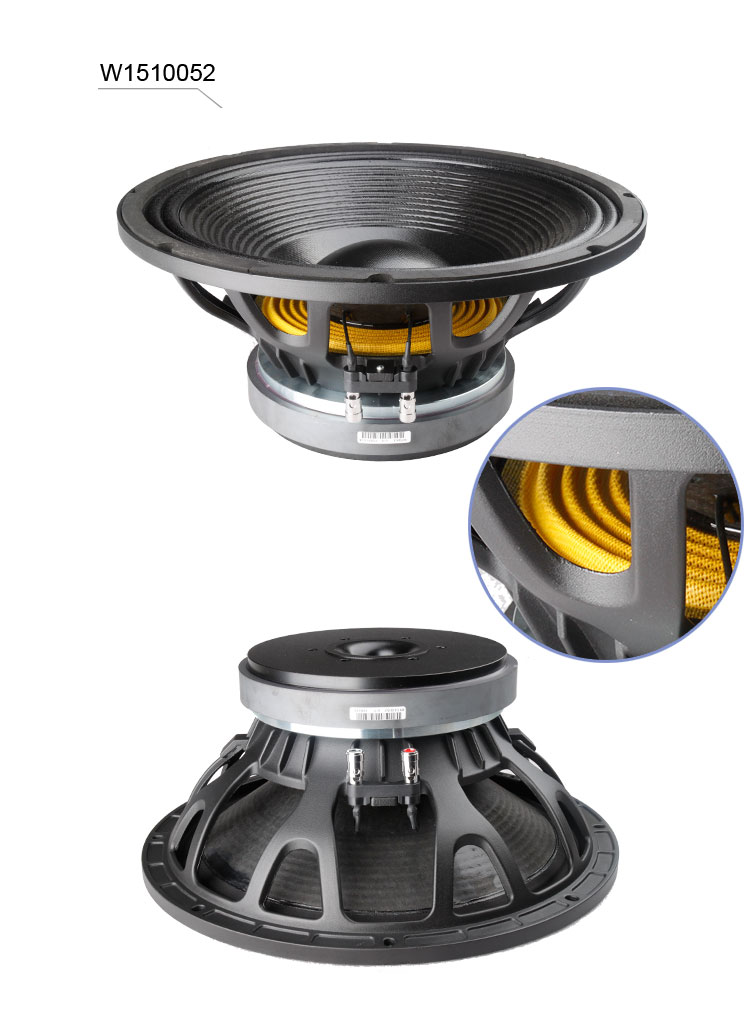

W1510052

Key Features

+86-020-84847046

Description




MODEL W1510052
TYPE MID BASS
Nominal Diameter 380/15 mm/inch
Rated impedance 8 ohm
Power handing capacity 800 watts
Sensitivity(1w/1m) 96 dB
Frequency Range Fs-1500 Hz
Voice Coil Diameter 100/4 mm/inch
Voice Coil Material Copper
Number of layer 2
Kind of layer inside/outside
Resonance frequency Fs 43 Hz
Dc resistance Re 5.7 ohm
Mechanical factor Qms 9.83
Electrical factor Qes 0.44
Total factor Qts 0.43
BL factor BL 22 T.M
Effective Moving mass Mms 135.2 g
Effective Cas air load Vas 103.76 liters
Effective piston area Sd 0.0871 m^2
Overall Diameter Φ394/Φ15.51 mm/inch
Bolt Circle Diameter Φ375/Φ14.76 mm/inch
Bolt Hole Diameter 8-7*9/8-0.28*0.35 mm/inch
Mount Baffle Cut-out Φ354/Φ13.93 mm/inch
Depth 183/7.52 mm/inch
Net Weight         ( 1 unit) 10 kg
Shipping Weight     ( 1 unit) 12 kg
Package Size      ( 1 unit) 421*411*219 mm
